Power Window Control System - Diagnostic Codes & Symptom Tests
>>
Power Window Control System
>>
Driver Side Power Window does not Operate with Power Window Master Switch [12/2019 - 11/2023]
>>

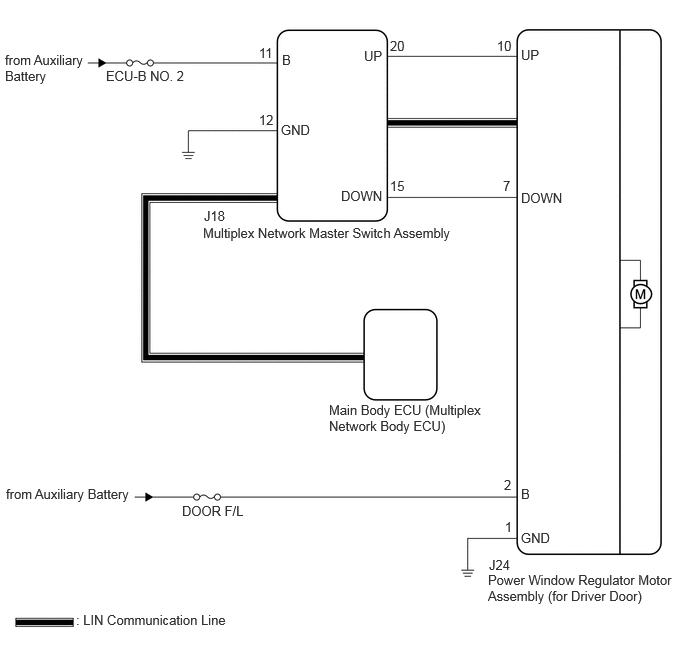

Wiring Diagram
Driver Side Power Window does not Operate with Power Window Master Switch [12/2019 - 11/2023]: Wiring Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
