Power Window Control System - Diagnostic Codes & Symptom Tests
>>
Power Window Control System
>>
Front Passenger Side Power Window does not Operate with Front Passenger Side Power Window Switch [11/2023 - ]
>>

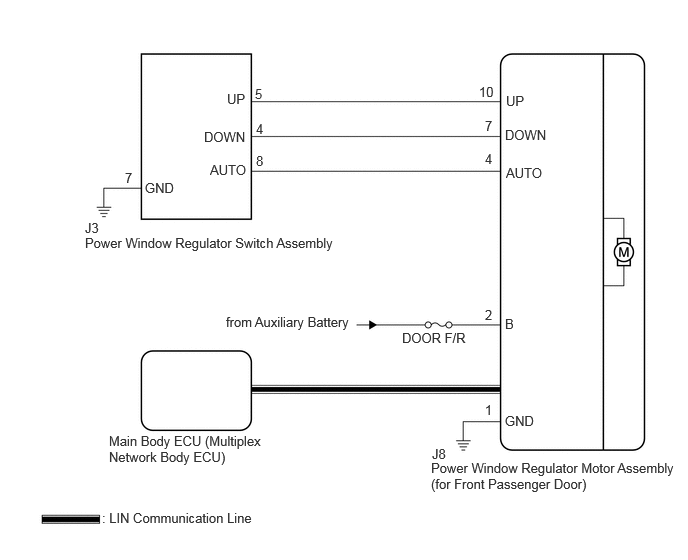

Wiring Diagram
Front Passenger Side Power Window does not Operate with Front Passenger Side Power Window Switch [11/2023 - ]: Wiring Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
