DSD Information System
Home
>>
Toyota
>>
2021
>>
Highlander LE, 4WD
>>
Repair and Diagnosis
>>
Body & Frame
>>
Windows
>>
Power Window Control System - Diagnostic Codes & Symptom Tests
>>
Power Window Control System
>>
Rear Power Window RH does not Operate with Rear Power Window Switch RH [12/2019 - 11/2023]
>>

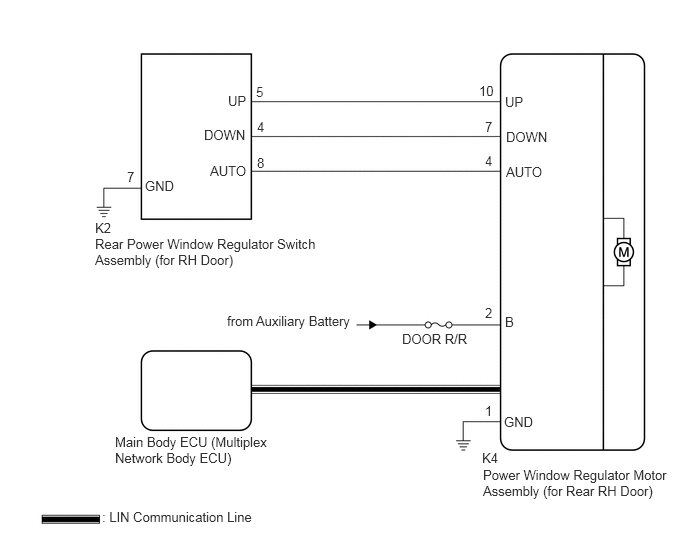

Wiring Diagram
Rear Power Window RH does not Operate with Rear Power Window Switch RH [12/2019 - 11/2023]: Wiring Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
