Parts Location [12/2019 - 10/2021]: Illustration
WARNING: This page is about a different variant/trim than selected.

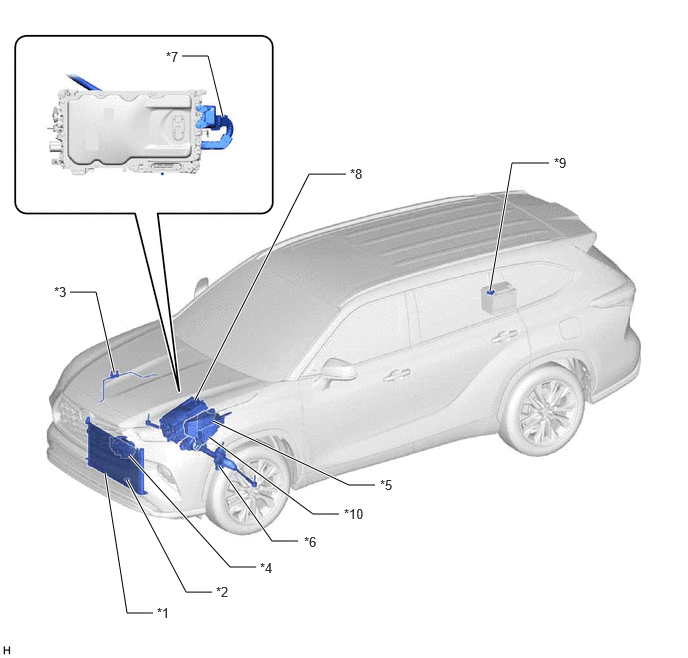

| *1 | COOLER CONDENSER ASSEMBLY | *2 | AMBIENT TEMP. SENSOR (THERMISTOR ASSEMBLY) |
| *3 | AIR CONDITIONER PRESSURE SENSOR | *4 | COMPRESSOR WITH MOTOR ASSEMBLY |
| *5 | ECM | *6 | POWER STEERING ECU (RACK AND PINION POWER STEERING GEAR ASSEMBLY) |
| *7 | HV AIR CONDITIONING WIRE | *8 | INVERTER WITH CONVERTER ASSEMBLY |
| *9 | BATTERY STATE SENSOR ASSEMBLY | *10 | NO. 1 ENGINE ROOM RELAY BLOCK AND NO. 1 JUNCTION BLOCK ASSEMBLY - HTR FUSE - A/C RR FUSE - A/C FUSE |
| *A | w/o Toyota Multi Operation Touch System | *B | w/ Toyota Multi Operation Touch System |
| *C | w/o Auto Wiper System | *D | w/ Auto Wiper System |

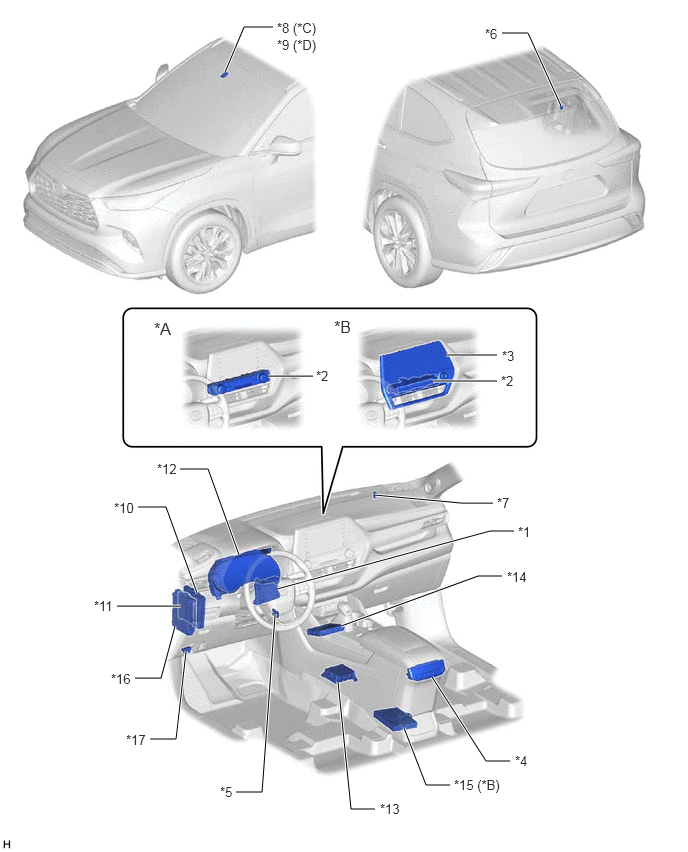

| *1 | AIR CONDITIONING AMPLIFIER ASSEMBLY | *2 | AIR CONDITIONING CONTROL ASSEMBLY |
| *3 | MULTI-DISPLAY ASSEMBLY | *4 | NO. 2 AIR CONDITIONING CONTROL ASSEMBLY |
| *5 | ROOM TEMP. SENSOR (COOLER THERMISTOR) | *6 | NO. 2 ROOM TEMP. SENSOR (COOLER THERMISTOR) |
| *7 | AUTOMATIC LIGHT CONTROL SENSOR | *8 | WINDSHIELD HUMIDITY SENSOR (AIR CONDITIONING THERMISTOR ASSEMBLY) |
| *9 | WINDSHIELD HUMIDITY SENSOR (RAIN SENSOR) | *10 | HYBRID VEHICLE CONTROL ECU |
| *11 | MAIN BODY ECU (MULTIPLEX NETWORK BODY ECU) | *12 | COMBINATION METER ASSEMBLY |
| *13 | AIRBAG SENSOR ASSEMBLY | *14 | DCM (TELEMATICS TRANSCEIVER) |
| *15 | INTEGRATION CONTROL SUB-ASSEMBLY | *16 | INSTRUMENT PANEL JUNCTION BLOCK ASSEMBLY - ECU-IG1 NO. 3 FUSE - ECU-IG1 NO. 4 FUSE |
| *17 | DLC3 | - | - |

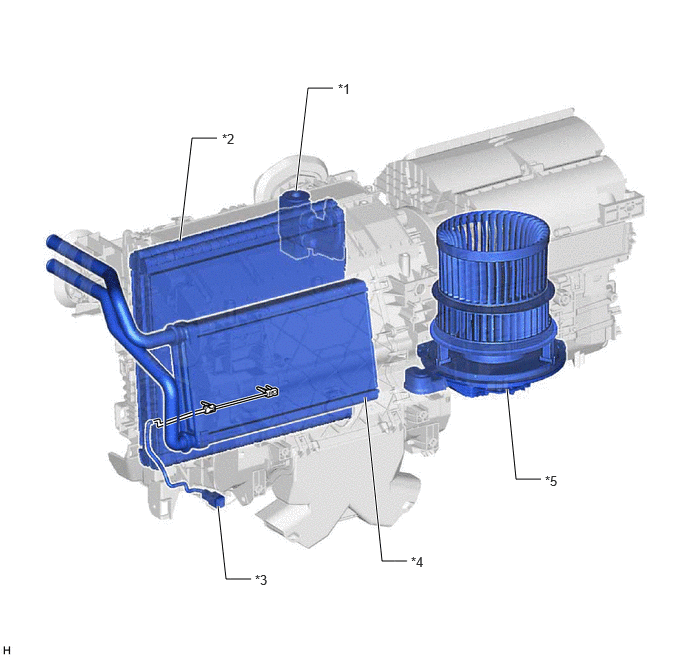

| *1 | COOLER EXPANSION VALVE | *2 | NO. 1 COOLER EVAPORATOR SUB-ASSEMBLY |
| *3 | EVAPORATOR TEMP. SENSOR (NO. 1 COOLER THERMISTOR) | *4 | HEATER RADIATOR UNIT SUB-ASSEMBLY |
| *5 | BLOWER MOTOR WITH FAN SUB-ASSEMBLY | - | - |

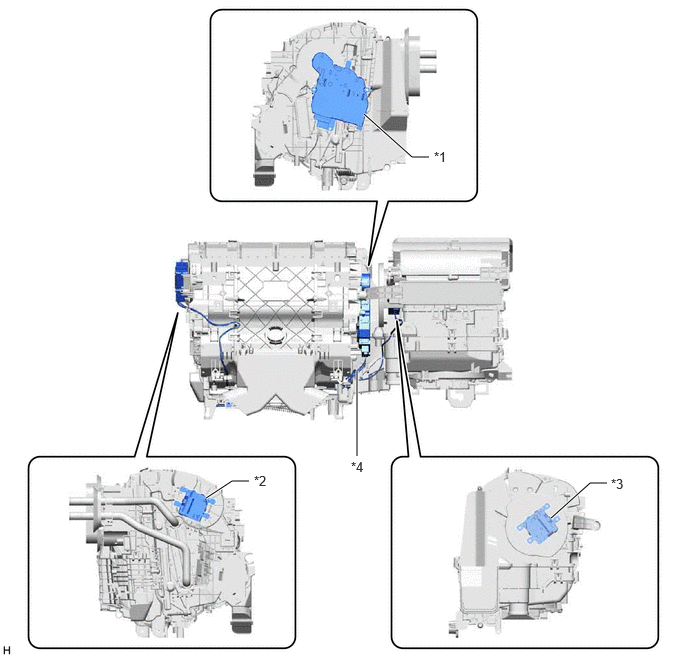

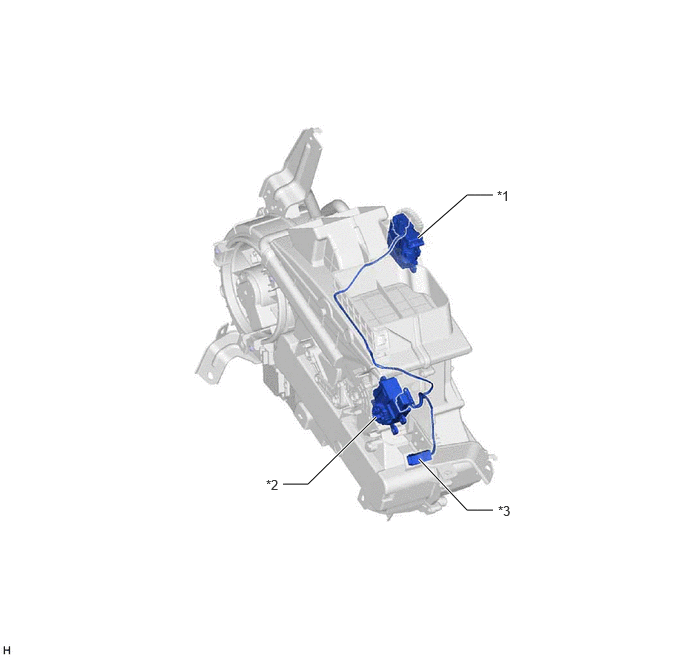

| *1 | NO. 1 AIR CONDITIONING RADIATOR DAMPER SERVO SUB-ASSEMBLY | *2 | NO. 2 AIR CONDITIONING RADIATOR DAMPER SERVO SUB-ASSEMBLY |
| *3 | NO. 1 BLOWER DAMPER SERVO SUB-ASSEMBLY | *4 | AIR CONDITIONING HARNESS ASSEMBLY |

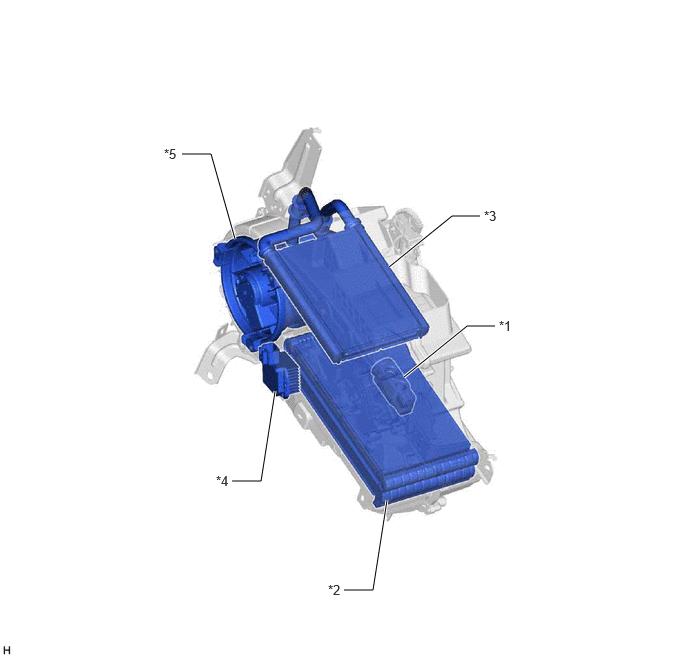

| *1 | REAR COOLING UNIT EXPANSION VALVE | *2 | REAR EVAPORATOR SUB-ASSEMBLY |
| *3 | REAR HEATER RADIATOR UNIT SUB-ASSEMBLY | *4 | REAR BLOWER MOTOR CONTROL |
| *5 | REAR BLOWER MOTOR WITH FAN SUB-ASSEMBLY | - | - |
