System Diagram [10/2022 - 11/2023]

WARNING: This page is about a different variant/trim than selected.

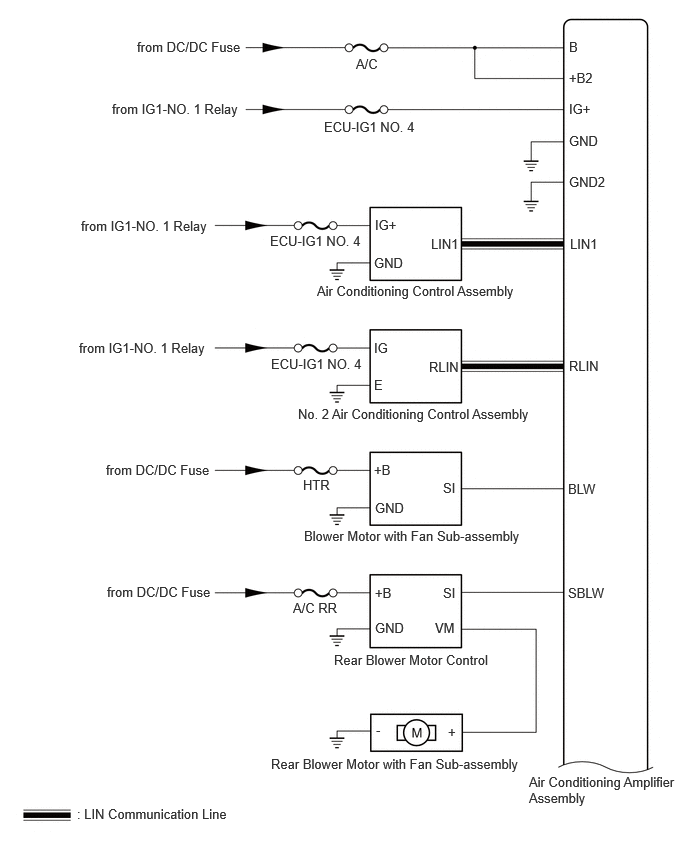

GTY1111354Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
GTY889494Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

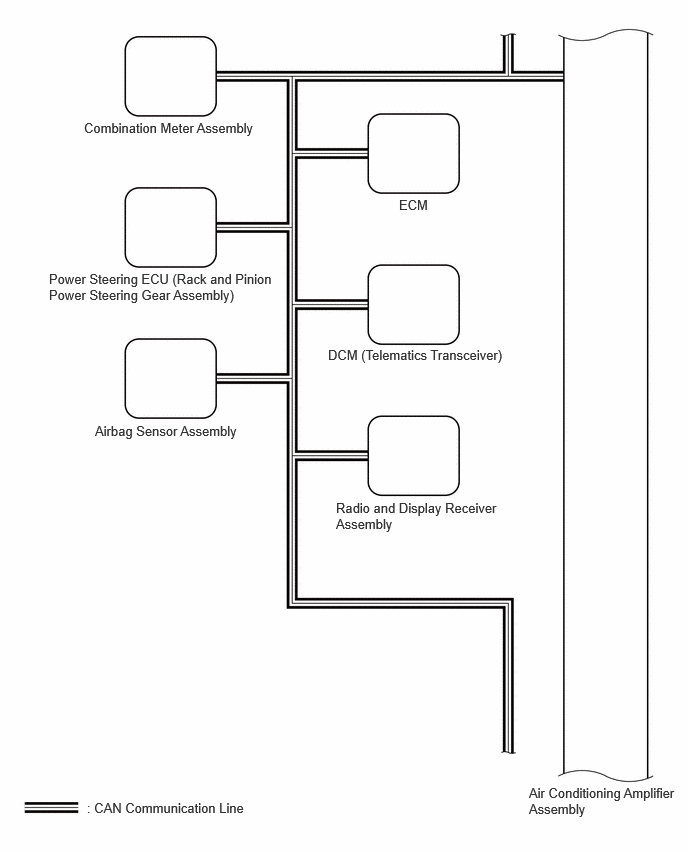

GTY1122237Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

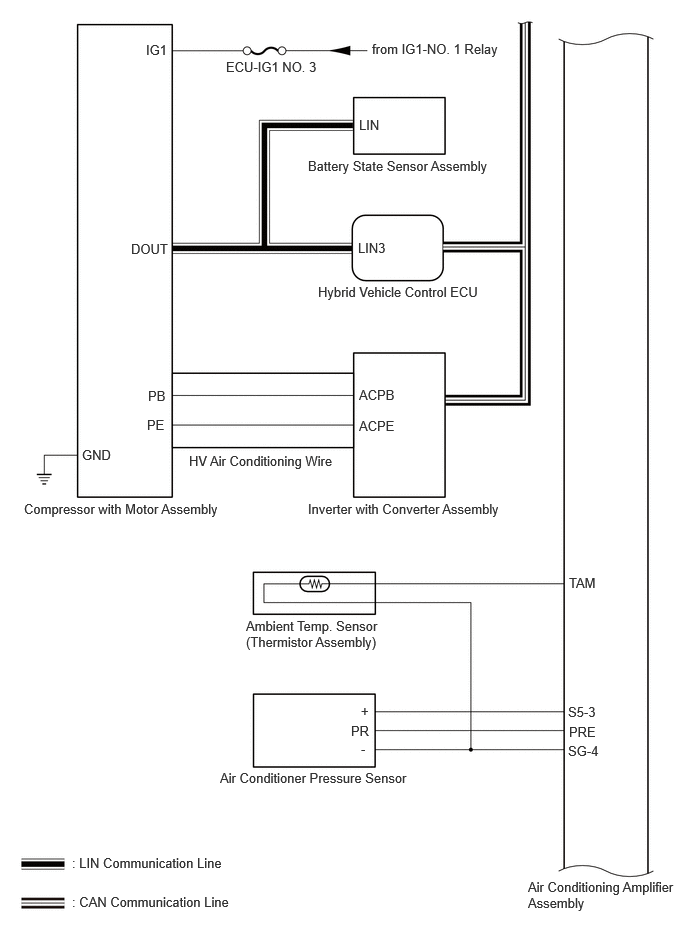

GTY935662Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

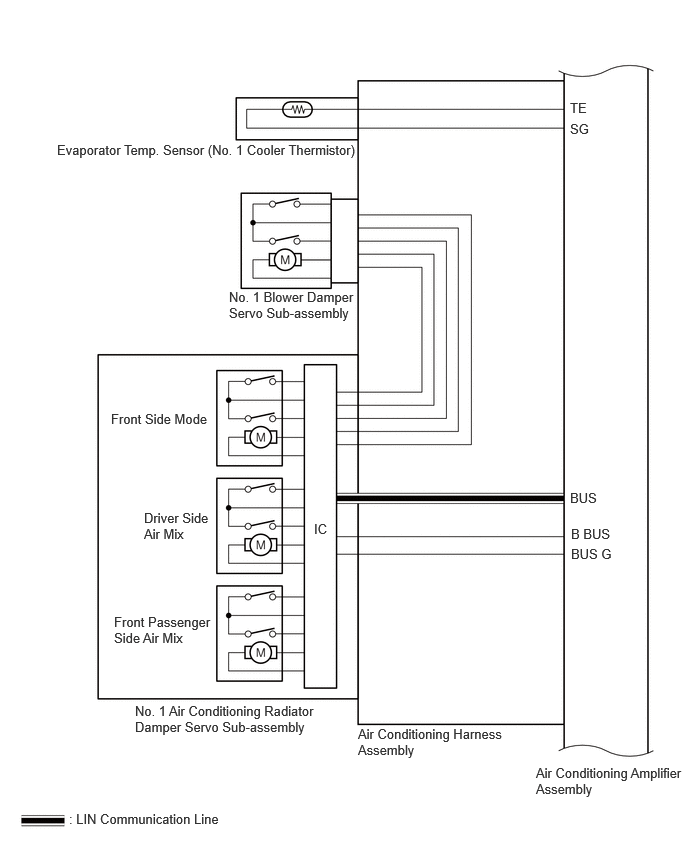

GTY1120511Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
GTY943566Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
