System Diagram [11/2023 - ]

WARNING: This page is about a different variant/trim than selected.

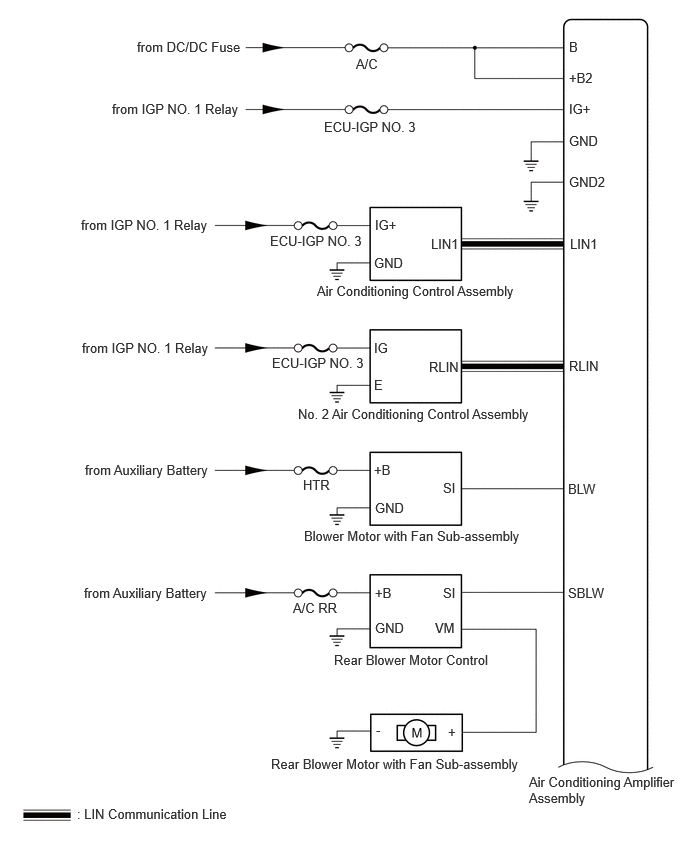

GTY1179535Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
GTY1180080Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
GTY1179151Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

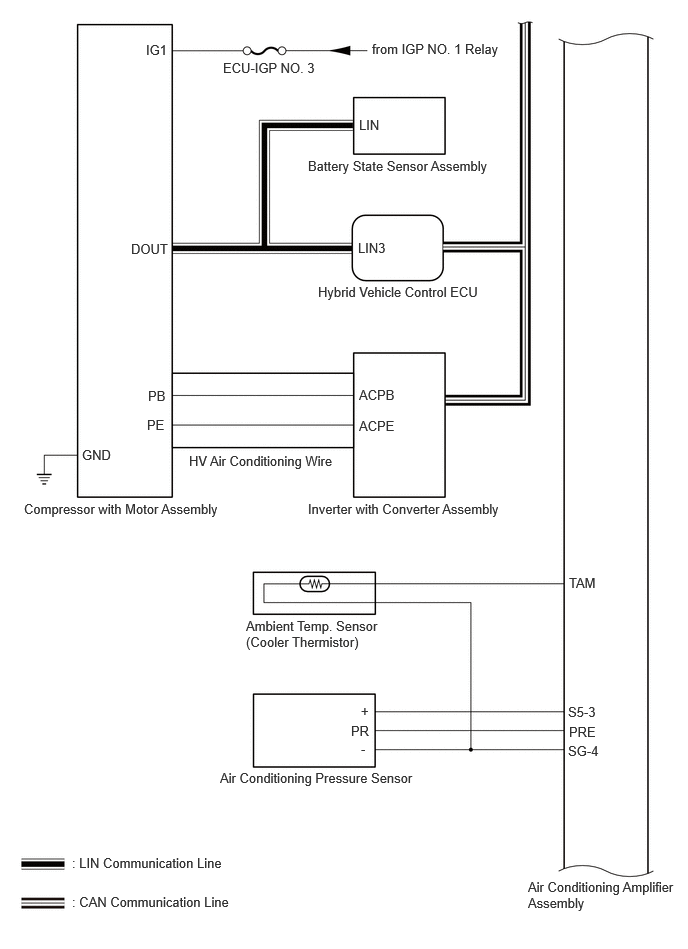

GTY1178937Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
GTY1120511Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
GTY943566Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
