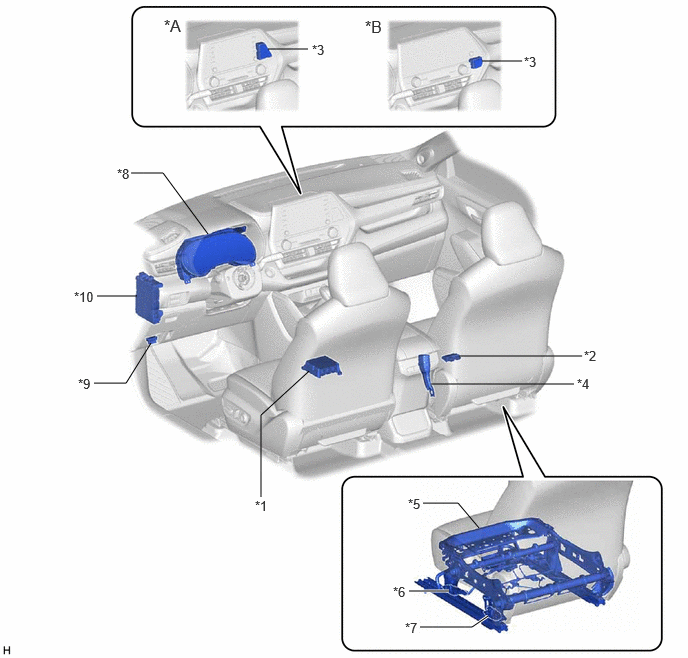

Parts Location [10/2022 - 11/2023]: Illustration
| *1 | BRAKE ACTUATOR ASSEMBLY - SKID CONTROL ECU (for Gasoline Model) - NO. 2 SKID CONTROL ECU (for HV Model) |
- | - |
| *A | for 8 Inch Display | *B | for 12.3 Inch Display |
| *1 | AIRBAG SENSOR ASSEMBLY | *2 | OCCUPANT DETECTION ECU |
| *3 | TELLTALE LIGHT ASSEMBLY - PASSENGER AIRBAG ON/OFF INDICATOR |
*4 | FRONT SEAT INNER BELT ASSEMBLY RH - FRONT PASSENGER SIDE BUCKLE SWITCH |
| *5 | SEPARATE TYPE FRONT SEAT CUSHION SPRING ASSEMBLY RH | *6 | FRONT OCCUPANT CLASSIFICATION SENSOR LH |
| *7 | REAR OCCUPANT CLASSIFICATION SENSOR LH | *8 | COMBINATION METER ASSEMBLY - SRS WARNING LIGHT |
| *9 | DLC3 | *10 | INSTRUMENT PANEL JUNCTION BLOCK ASSEMBLY - A/BAG-IG2 FUSE - ECU-IG1 NO. 4 FUSE |
