Terminals Of Ecu [11/2023 - ]

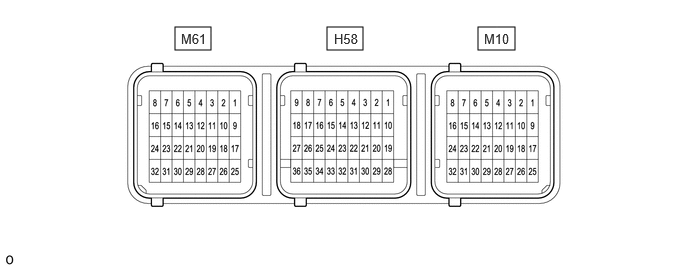

  1. AIRBAG SENSOR ASSEMBLY
    GTY938554Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    Terminal No. Terminal Symbol Destination
    H58-32 E2 Ground
    H58-33 E1
    H58-34 P-AB Passenger airbag ON/OFF indicator (Telltale light assembly)
    H58-35 PAON
    H58-36 IGR A/BAG-IGR fuse
    M10-18 GNDR Passenger seat buckle switch (Front seat inner belt assembly RH)
    M10-27 RBE+
    M10-24 SVC Occupant classification sensor (Separate type front seat cushion spring assembly RH)
    M10-31 SGD
    M10-32 SIG
