Occupant Classification System
>>
DTC B1771: Passenger Side Buckle Switch Circuit Malfunction [10/2021 - 11/2023]
>>

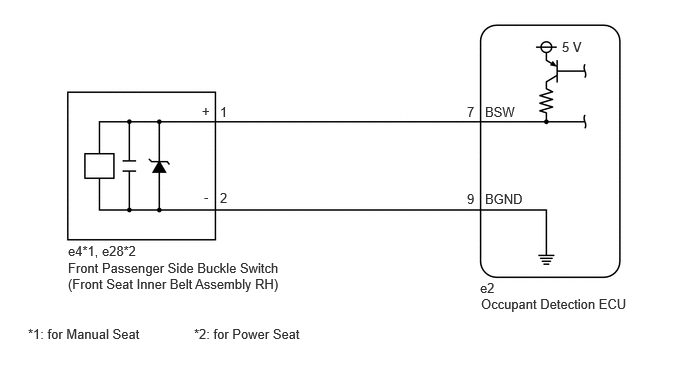

Wiring Diagram
DTC B1771: Passenger Side Buckle Switch Circuit Malfunction [10/2021 - 11/2023]: Wiring Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
