Occupant Classification System
>>
DTC B1780: Front Occupant Classification Sensor LH Circuit Malfunction [12/2019 - 11/2023]
>>

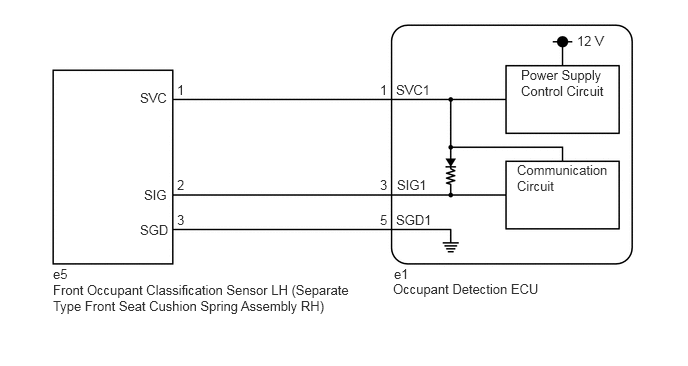

Wiring Diagram
DTC B1780: Front Occupant Classification Sensor LH Circuit Malfunction [12/2019 - 11/2023]: Wiring Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
