Occupant Classification System
>>
DTC B1782: Rear Occupant Classification Sensor LH Circuit Malfunction [12/2019 - 11/2023]
>>
Wiring Diagram

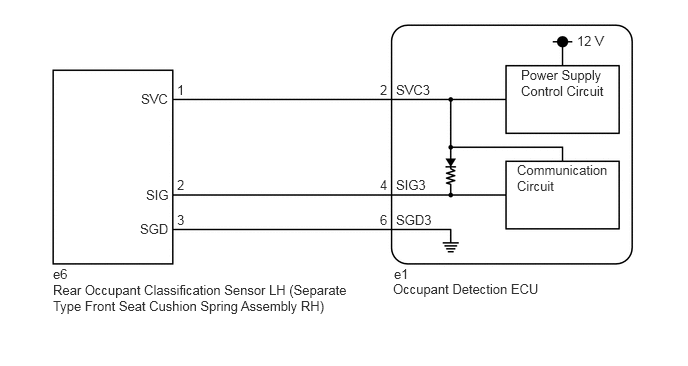

DTC B1782: Rear Occupant Classification Sensor LH Circuit Malfunction [12/2019 - 11/2023]: Wiring Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
