Home >> Toyota >> 2021 >> Highlander LE, 4WD >> Repair and Diagnosis >> Restraints >> Air Bag, SRS >> Occupant Classification System - Diagnostic Codes & Symptom Tests >> Occupant Classification System >> DTC B1793-12: Load Sensor for Occupant Detection System Circuit Short to Battery [11/2023 - ] >> Wiring Diagram

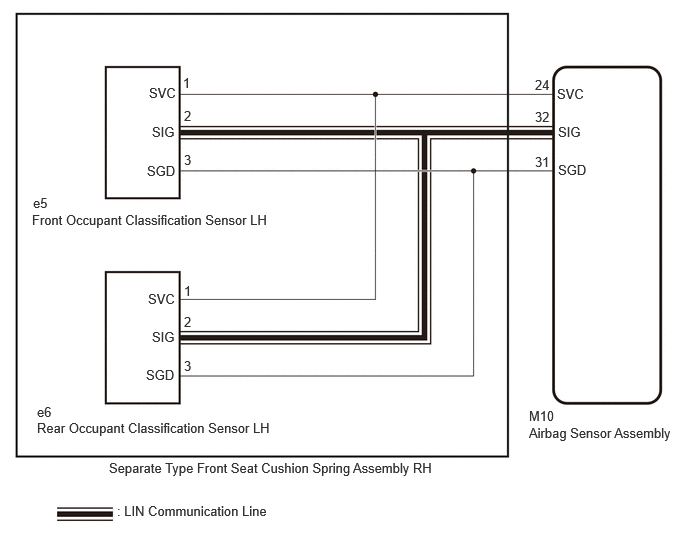

DTC B1793-12: Load Sensor for Occupant Detection System Circuit Short to Battery [11/2023 - ]: Wiring Diagram

GTY1179082

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
