DTC B1793-17: Load Sensor for Occupant Detection System Circuit Voltage Above Threshold [11/2023 - ]: Procedure

  1. CHECK CONNECTION OF CONNECTORS
    1. Turn the ignition switch off.
    2. Disconnect the cable from the negative (-) auxiliary battery terminal, and wait for at least 60 seconds.
    3. Check that the connectors are properly connected to the airbag sensor assembly and separate type front seat cushion spring assembly RH.

      OK

      The connectors are properly connected.

      Result

      Proceed to
      OK
      NG

    Result:

    NG

    CONNECT CONNECTORS PROPERLY

    Result:

    OK

    See step  2

  2. CHECK CONNECTORS
    1. Disconnect the airbag sensor assembly connector.
      GTY985316Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 Separate Type Front Seat Cushion Spring Assembly RH
      *2 Airbag Sensor Assembly
      *3 Wire Harness
    2. Disconnect the separate type front seat cushion spring assembly RH connector.
    3. Check that the terminals of the connectors are not deformed or damaged.

      OK

      The terminals are not deformed or damaged.

      Result

      Proceed to
      OK
      NG

    Result:

    NG

    REPAIR OR REPLACE HARNESS OR CONNECTOR

    Result:

    OK

    See step  3

  3. CHECK HARNESS AND CONNECTOR (AIRBAG SENSOR ASSEMBLY - AUXILIARY BATTERY)
    1. Disconnect the airbag sensor assembly connector.
      GTY1180812Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Front view of wire harness connector
      (to Airbag Sensor Assembly)
    2. Connect the cable to the negative (-) auxiliary battery terminal, and wait for at least 2 seconds.
    3. Turn the ignition switch to ON.
    4. Operate all components of the electrical systems (defogger, wipers, headlights, heater blower, etc.).
    5. Measure the voltage according to the value(s) in the table below.

      Standard Voltage

      Tester Connection Condition Specified Condition
      H58-36 (IGR) - Body ground Ignition switch ON 8 to 16 V

      Result

      Proceed to
      OK
      NG

    Result:

    NG

    REPAIR OR REPLACE HARNESS OR CONNECTOR

    Result:

    OK

    See step  4

  4. CHECK HARNESS AND CONNECTOR (AIRBAG SENSOR ASSEMBLY - SEPARATE TYPE FRONT SEAT CUSHION SPRING ASSEMBLY RH)
    1. Turn the ignition switch to ON.

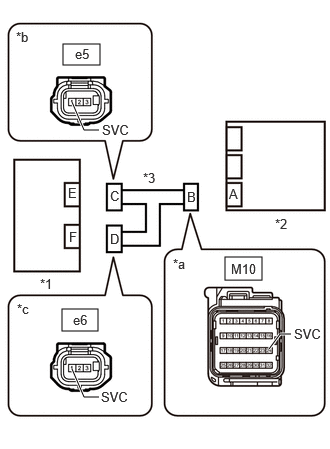

      GTY1177864Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 Separate Type Front Seat Cushion Spring Assembly RH
      *2 Airbag Sensor Assembly
      *3 Wire Harness
      *a Front view of wire harness connector
      (to Airbag Sensor Assembly)
      *b Front view of wire harness connector
      (to Separate Type Front Seat Cushion Spring Assembly RH (Front Occupant Classification Sensor LH))
      *c Front view of wire harness connector
      (to Separate Type Front Seat Cushion Spring Assembly RH (Rear Occupant Classification Sensor LH))
    2. Measure the voltage according to the value(s) in the table below.

      Standard Voltage

      Tester Connection Condition Specified Condition
      M10-24 (SVC) - Body ground Ignition switch ON Below 1 V
      e5-1 (SVC) - Body ground Ignition switch ON Below 1 V
      e6-1 (SVC) - Body ground Ignition switch ON Below 1 V

      Result

      Proceed to
      OK
      NG

    Result:

    OK

    REPLACE AIRBAG SENSOR ASSEMBLY. Refer to  REMOVAL [11/2023 - ]

    Result:

    NG

    REPAIR OR REPLACE HARNESS OR CONNECTOR
