System Diagram [12/2019 - 10/2021]

WARNING: This page is about a different variant/trim than selected.
  1. SMART KEY SYSTEM (for Start Function)

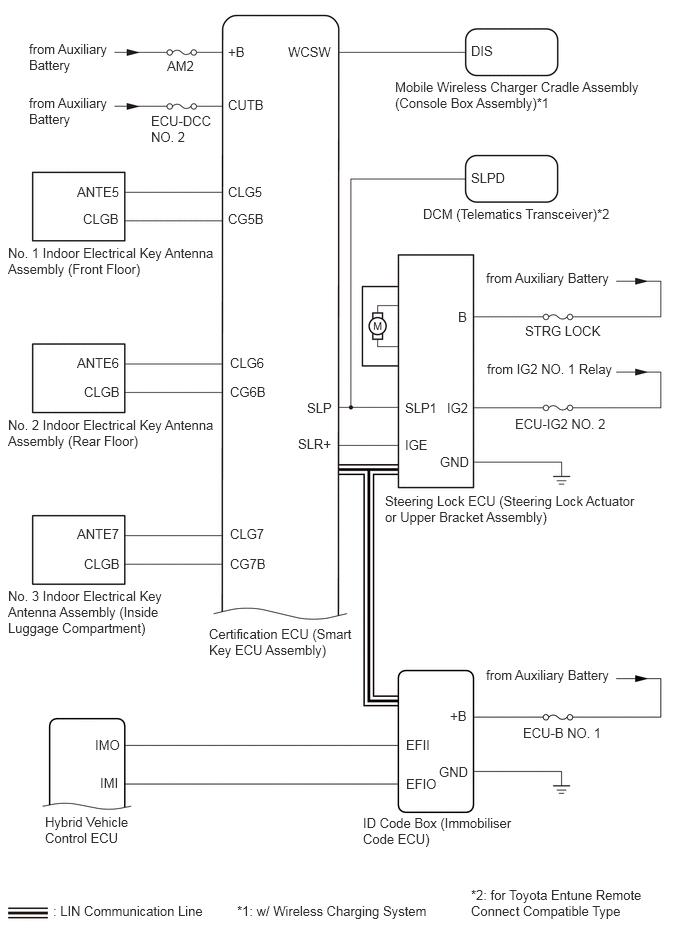

    GTY919070Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    GTY925855Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    GTY914227Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. SMART KEY SYSTEM (for Entry Function)

    Refer to SYSTEM DIAGRAM [12/2019 - 11/2023]
