System Diagram [11/2023 - ]

WARNING: This page is about a different variant/trim than selected.
  1. SMART KEY SYSTEM (for Start Function)

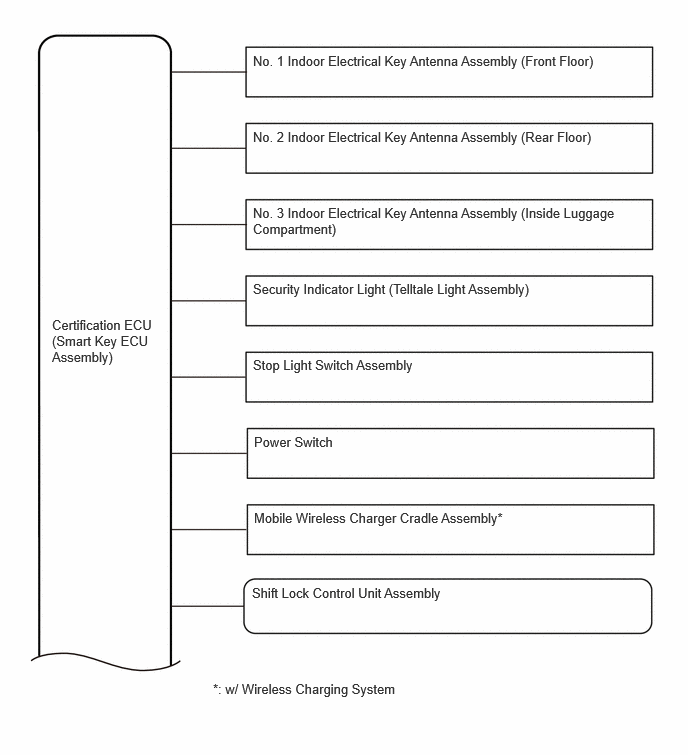

    GTY1178415Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

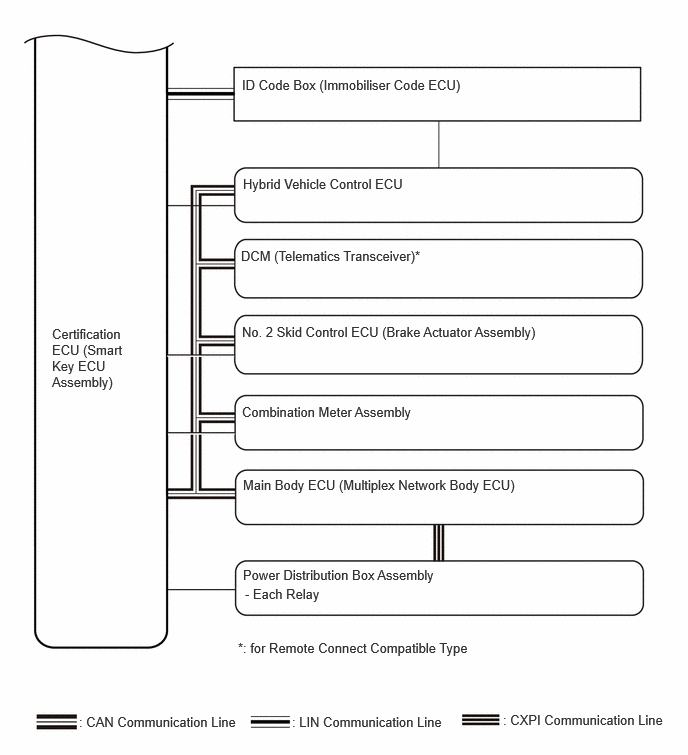

    GTY1178328Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. SMART KEY SYSTEM (for Entry Function)

    Refer to SYSTEM DIAGRAM [11/2023 - ]
