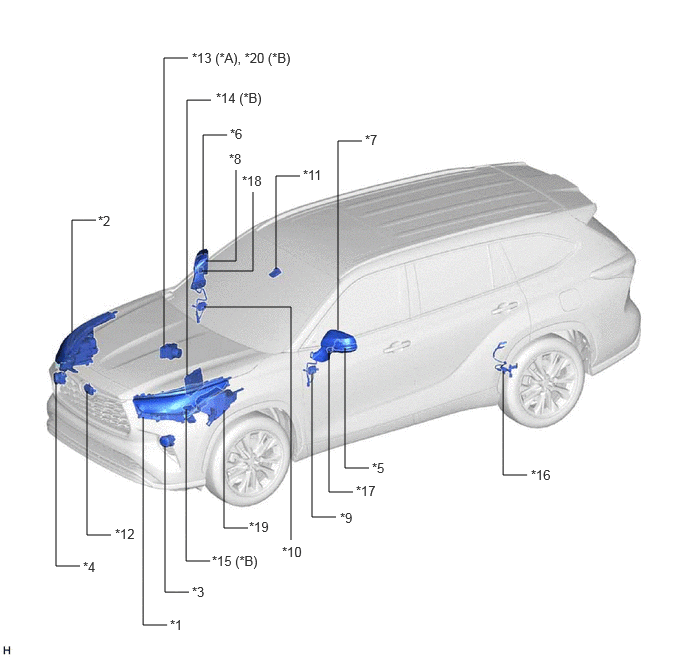

Parts Location [12/2019 - 11/2023]: Illustration
| *A | for HV Model | *B | for Gasoline Model |
| *1 | HEADLIGHT ASSEMBLY LH - HEADLIGHT ECU SUB-ASSEMBLY LH |
*2 | HEADLIGHT ASSEMBLY RH - HEADLIGHT ECU SUB-ASSEMBLY RH |
| *3 | FOG LIGHT ASSEMBLY LH | *4 | FOG LIGHT ASSEMBLY RH |
| *5 | SIDE TURN SIGNAL LIGHT ASSEMBLY LH | *6 | SIDE TURN SIGNAL LIGHT ASSEMBLY RH |
| *7 | OUTER REAR VIEW MIRROR ASSEMBLY LH | *8 | OUTER REAR VIEW MIRROR ASSEMBLY RH |
| *9 | OUTER MIRROR CONTROL ECU ASSEMBLY LH | *10 | OUTER MIRROR CONTROL ECU ASSEMBLY RH |
| *11 | FORWARD RECOGNITION CAMERA | *12 | MILLIMETER WAVE RADAR SENSOR ASSEMBLY |
| *13 | NO. 2 SKID CONTROL ECU (BRAKE ACTUATOR ASSEMBLY) | *14 | ECM |
| *15 | PARK/NEUTRAL POSITION SWITCH ASSEMBLY | *16 | REAR HEIGHT CONTROL SENSOR SUB-ASSEMBLY LH |
| *17 | OUTER MIRROR LIGHT ASSEMBLY LH | *18 | OUTER MIRROR LIGHT ASSEMBLY RH |
| *19 | NO. 1 ENGINE ROOM RELAY BLOCK AND NO. 1 JUNCTION BLOCK ASSEMBLY - FOG FR RELAY - H-LP RH RELAY - H-LP LH RELAY - FOG FR FUSE (w/o Stop and Start System) - H-LP RH FUSE - H-LP LH FUSE - J/B FUSE |
*20 | SKID CONTROL ECU (BRAKE ACTUATOR ASSEMBLY) |
| *1 | REAR COMBINATION LIGHT ASSEMBLY LH - REAR COMBINATION LIGHT CORD LH - TAILLIGHT LED - STOP LIGHT LED |
*2 | REAR COMBINATION LIGHT ASSEMBLY RH - REAR COMBINATION LIGHT CORD RH - TAILLIGHT LED - STOP LIGHT LED |
| *3 | REAR LIGHT ASSEMBLY LH | *4 | REAR LIGHT ASSEMBLY RH |
| *5 | LICENSE PLATE LIGHT ASSEMBLY LH | *6 | LICENSE PLATE LIGHT ASSEMBLY RH |
| *7 | CENTER STOP LIGHT ASSEMBLY | - | - |
| *A | for HV Model | *B | for Gasoline Model |
| *1 | TURN SIGNAL SWITCH | *2 | STEERING WHEEL SWITCH HOUSING |
| *3 | AUTOMATIC LIGHT CONTROL SENSOR | *4 | HAZARD WARNING SIGNAL SWITCH ASSEMBLY |
| *5 | COMBINATION METER ASSEMBLY | *6 | HYBRID VEHICLE CONTROL ECU |
| *7 | MAIN BODY ECU (MULTIPLEX NETWORK BODY ECU) | *8 | INSTRUMENT PANEL JUNCTION BLOCK ASSEMBLY - TAIL RELAY - BKUP LP RELAY - TAIL FUSE - ECU-B NO. 2 FUSE - ECU-DCC NO. 2 FUSE - HAZ FUSE - METER-IG2 FUSE - ECU-IG1 NO. 3 FUSE - STOP FUSE - ECU-ACC FUSE - BKUP LP FUSE |
| *9 | DLC3 | *10 | AUTO HIGH BEAM SWITCH |
| *11 | STOP LIGHT SWITCH ASSEMBLY | *12 | STEERING SENSOR |
| *13 | AIRBAG SENSOR ASSEMBLY | *14 | YAW RATE SENSOR ASSEMBLY |
