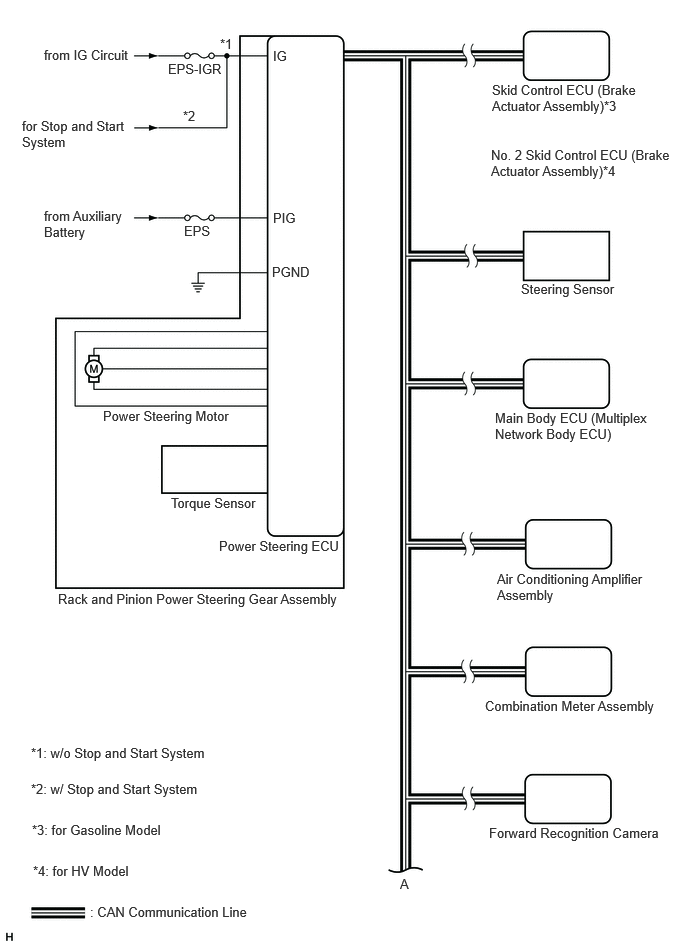

System Diagram [11/2023 - ]

GTY1177916Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

for Gasoline Model:

GTY908571Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

for HV Model:

GTY908570Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
