Parts Location [12/2019 - 11/2023]: Illustration

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

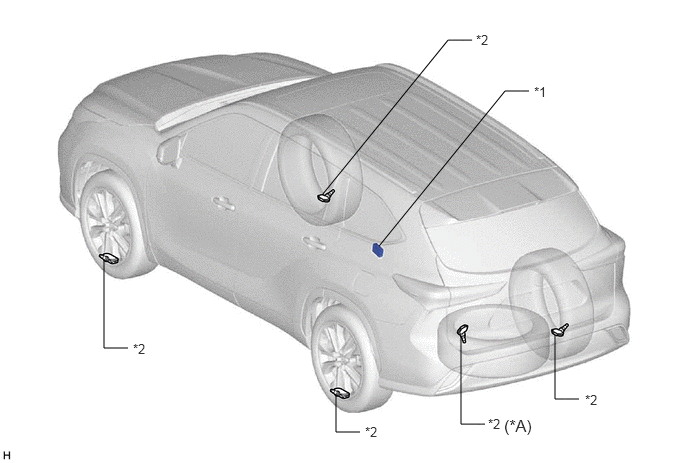

*A	w/ Full Size Spare Tire	-	-
*1	TIRE PRESSURE WARNING ECU AND RECEIVER	*2	TIRE PRESSURE WARNING VALVE AND TRANSMITTER

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

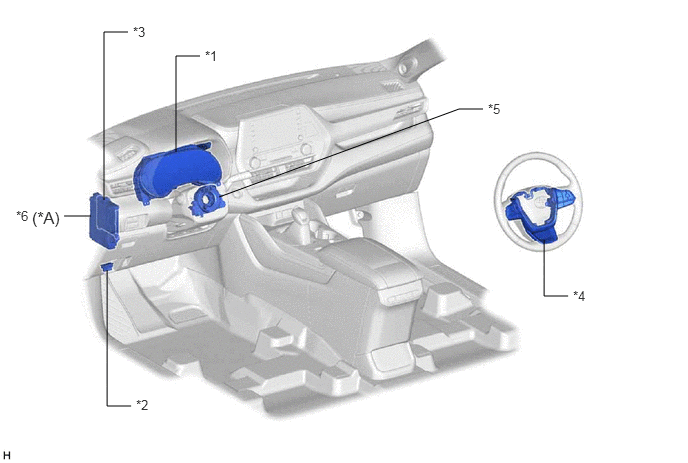

*A	w/o Stop and Start System	-	-
*1	COMBINATION METER ASSEMBLY - TIRE PRESSURE WARNING LIGHT - MULTI-INFORMATION DISPLAY	*2	DLC3
*3	MAIN BODY ECU (MULTIPLEX NETWORK BODY ECU)	*4	STEERING PAD SWITCH ASSEMBLY
*5	SPIRAL CABLE SUB-ASSEMBLY	*6	INSTRUMENT PANEL JUNCTION BLOCK ASSEMBLY - ECU-B NO. 2 FUSE - ECU-IG1 NO. 3 FUSE

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

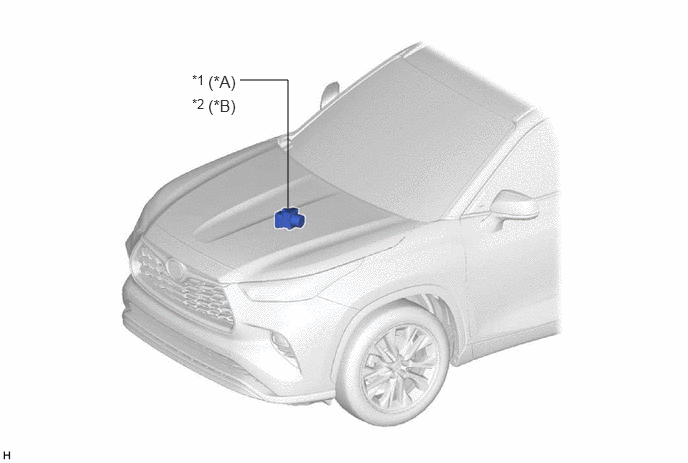

*A	for HV Model	*B	for Gasoline Model
*1	NO. 2 SKID CONTROL ECU (BRAKE ACTUATOR ASSEMBLY)	*2	SKID CONTROL ECU (BRAKE ACTUATOR ASSEMBLY)
