Parts Location [11/2023 - ]: Illustration

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*A	w/ Full Size Spare Tire	-	-
*1	TIRE PRESSURE WARNING ECU AND RECEIVER	*2	TIRE PRESSURE WARNING VALVE AND TRANSMITTER

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

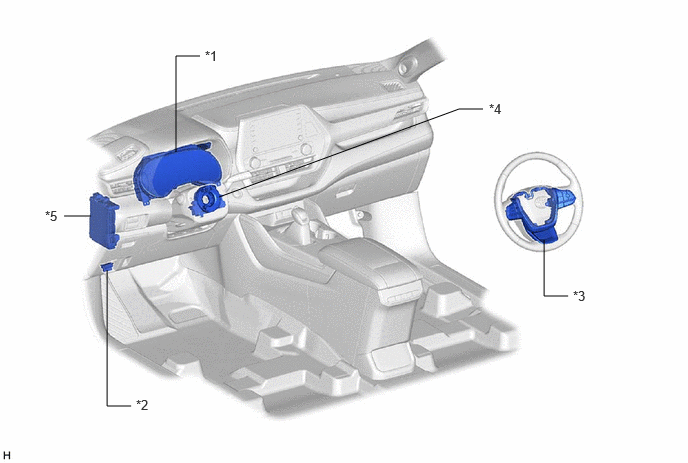

*1	COMBINATION METER ASSEMBLY - TIRE PRESSURE WARNING LIGHT - MULTI-INFORMATION DISPLAY	*2	DLC3
*3	STEERING PAD SWITCH ASSEMBLY	*4	SPIRAL CABLE SUB-ASSEMBLY
*5	POWER DISTRIBUTION BOX ASSEMBLY - ECU-B NO. 2 FUSE - ECU-IGR NO. 2 FUSE	-	-

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*A	for HV Model	*B	for Gasoline Model
*1	NO. 2 SKID CONTROL ECU (BRAKE ACTUATOR ASSEMBLY)	*2	SKID CONTROL ECU (BRAKE ACTUATOR ASSEMBLY)
