Parts Location [12/2019 - 11/2023]: Illustration
WARNING: This page is about a different variant/trim than selected.

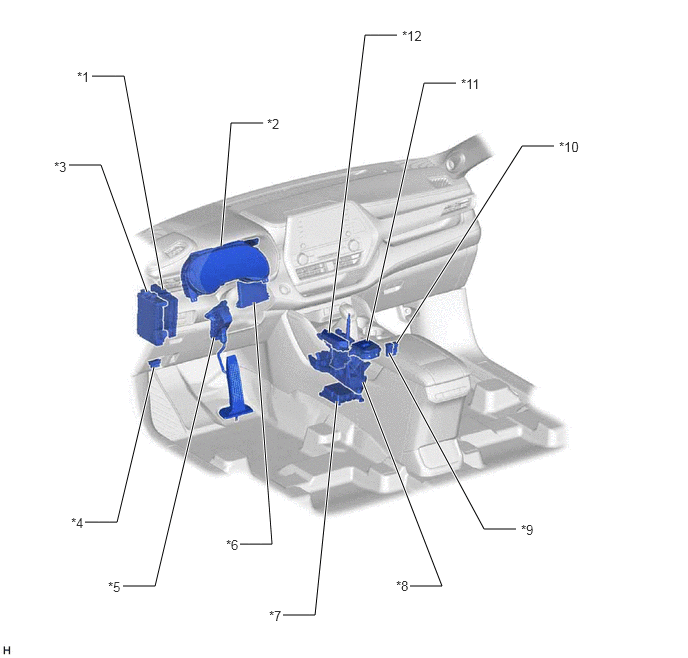

| *1 | HYBRID VEHICLE CONTROL ECU | *2 | COMBINATION METER ASSEMBLY |
| *3 | INSTRUMENT PANEL JUNCTION BLOCK ASSEMBLY - ECU-B NO. 2 FUSE |
*4 | DLC3 |
| *5 | ACCELERATOR PEDAL SENSOR ASSEMBLY | *6 | AIR CONDITIONING AMPLIFIER ASSEMBLY |
| *7 | AIRBAG SENSOR ASSEMBLY | *8 | SHIFT LOCK CONTROL UNIT ASSEMBLY |
| *9 | TRAIL MODE SWITCH (PATTERN SELECT SWITCH) | *10 | EV DRIVE MODE SWITCH (PATTERN SELECT SWITCH ASSEMBLY) |
| *11 | DRIVE MODE SELECT SWITCH (NO. 1 PATTERN SELECT SWITCH ASSEMBLY) | *12 | SHIFT POSITION INDICATOR |

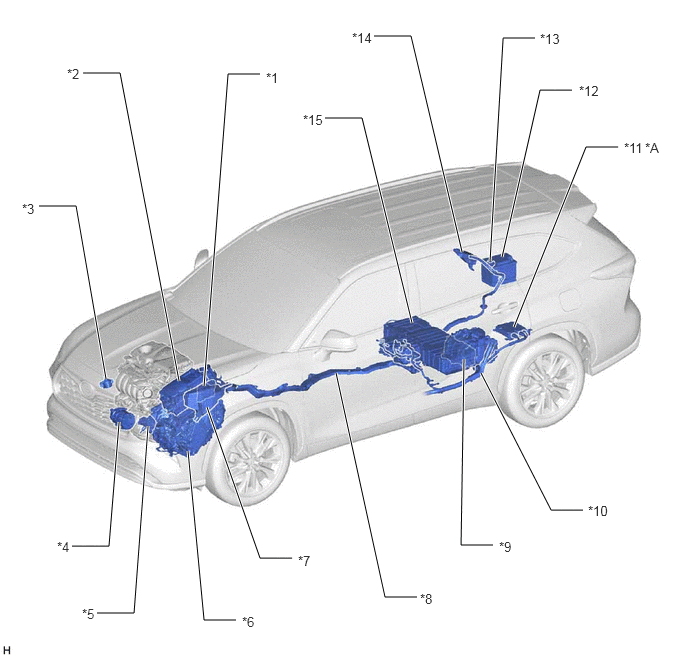

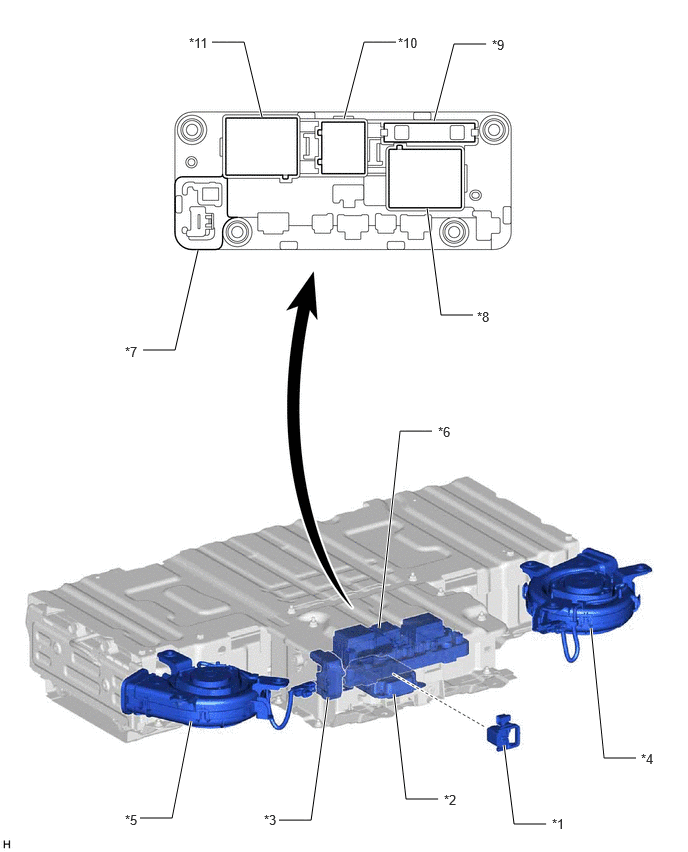

| *A | w/ 1500 W Voltage Inverter | - | - |
| *1 | ECM | *2 | INVERTER WITH CONVERTER ASSEMBLY |
| *3 | INVERTER WATER PUMP ASSEMBLY | *4 | COMPRESSOR WITH MOTOR ASSEMBLY |
| *5 | OIL PUMP WITH MOTOR ASSEMBLY | *6 | HYBRID VEHICLE TRANSAXLE ASSEMBLY |
| *7 | NO. 1 ENGINE ROOM RELAY BLOCK AND NO. 1 JUNCTION BLOCK ASSEMBLY - IG2 NO. 1 RELAY - INV W/PMP RELAY - OIL PMP RELAY - INV W/PMP FUSE - OIL PMP FUSE |
*8 | HV FLOOR UNDER WIRE |
| *9 | REAR TRACTION MOTOR WITH TRANSAXLE ASSEMBLY | *10 | NO. 2 FLOOR WIRE |
| *11 | VOLTAGE INVERTER ASSEMBLY | *12 | AUXILIARY BATTERY |
| *13 | BATTERY STATE SENSOR ASSEMBLY | *14 | NO. 5 FLOOR RELAY BLOCK AND NO. 5 FLOOR JUNCTION BLOCK ASSEMBLY - IGCT RELAY - BATT FAN NO. 1 RELAY - BATT FAN NO. 2 RELAY - IGCT-IG FUSE - IGCT NO. 2 FUSE - PCU FUSE - MG FUSE - BATT FAN NO. 1 FUSE - BATT FAN NO. 2 FUSE |
| *15 | HV BATTERY | - | - |

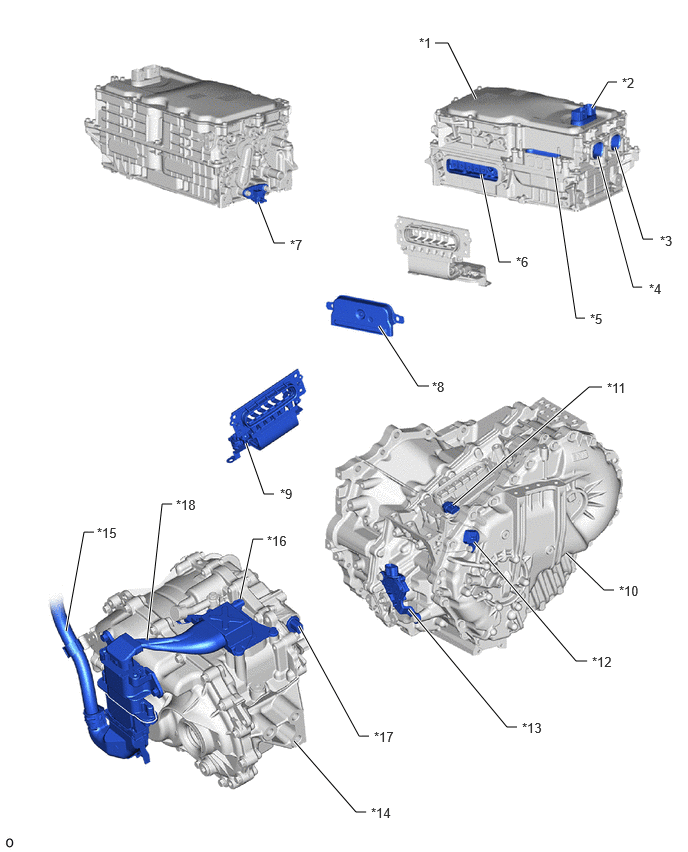

| *1 | INVERTER WITH CONVERTER ASSEMBLY | *2 | LOW VOLTAGE CONNECTOR |
| *3 | AIR CONDITIONING WIRE CONNECTION | *4 | HV FLOOR UNDER WIRE CONNECTION |
| *5 | HV FLOOR UNDER WIRE (REAR TRACTION MOTOR CABLE) CONNECTION - INTERLOCK |
*6 | MOTOR CABLE CONNECTION |
| *7 | AMD TERMINAL | *8 | INVERTER COVER - INTERLOCK |
| *9 | MOTOR CABLE | *10 | HYBRID VEHICLE TRANSAXLE ASSEMBLY |
| *11 | MOTOR TEMPERATURE SENSOR AND GENERATOR TEMPERATURE SENSOR CONNECTOR | *12 | MOTOR RESOLVER, GENERATOR RESOLVER AND TRANSMISSION FLUID TEMPERATURE SENSOR CONNECTOR |
| *13 | SHIFT LEVER POSITION SENSOR | *14 | REAR TRACTION MOTOR WITH TRANSAXLE ASSEMBLY |
| *15 | HV FLOOR UNDER WIRE (REAR TRACTION MOTOR CABLE) | *16 | REAR MOTOR TEMPERATURE SENSOR CONNECTOR |
| *17 | REAR MOTOR RESOLVER AND TRANSMISSION FLUID TEMPERATURE SENSOR CONNECTOR | *18 | REAR TRACTION MOTOR CABLE |
