System Diagram [12/2019 - 11/2023]

WARNING: This page is about a different variant/trim than selected.

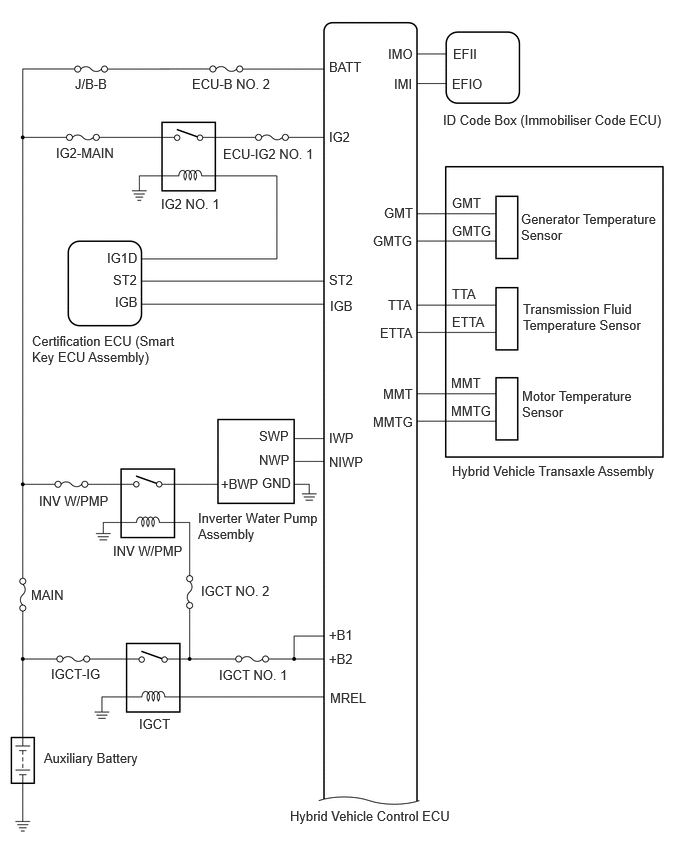

GTY867561Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

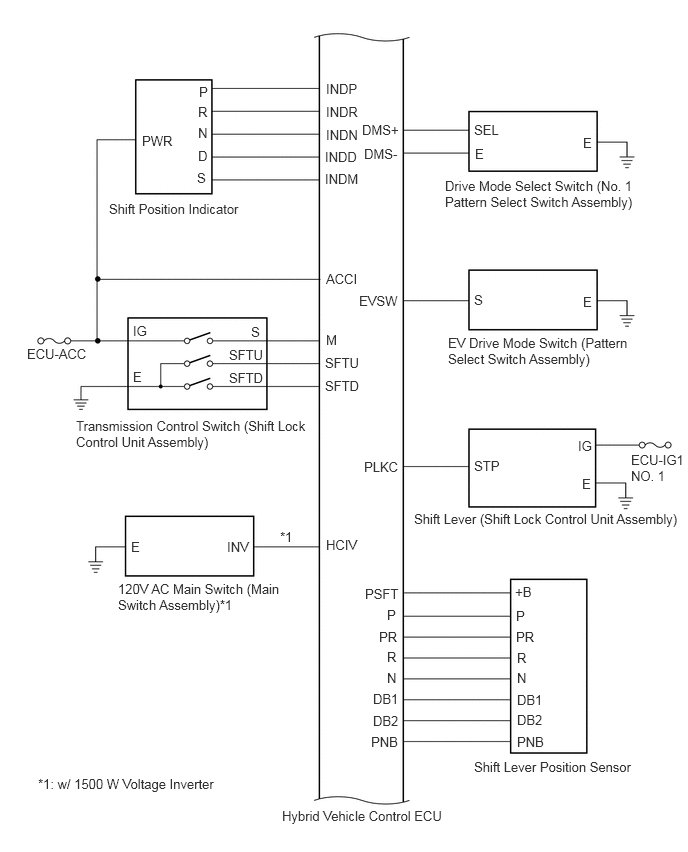

GTY871575Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
GTY874847Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
GTY879914Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

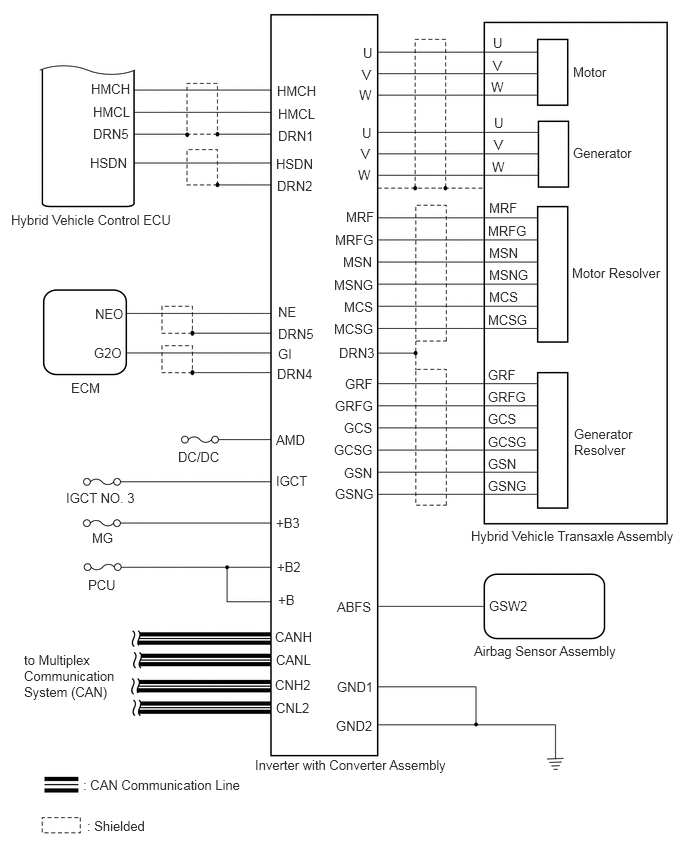

GTY877019Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
GTY884644Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
GTY881662Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
GTY842087Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
