Section 21 (Motor Generator Control System (AWD) - Diagnostics - Introduction (1 Of 2))
>>
MOTOR GENERATOR CONTROL SYSTEM (for AWD)
>>

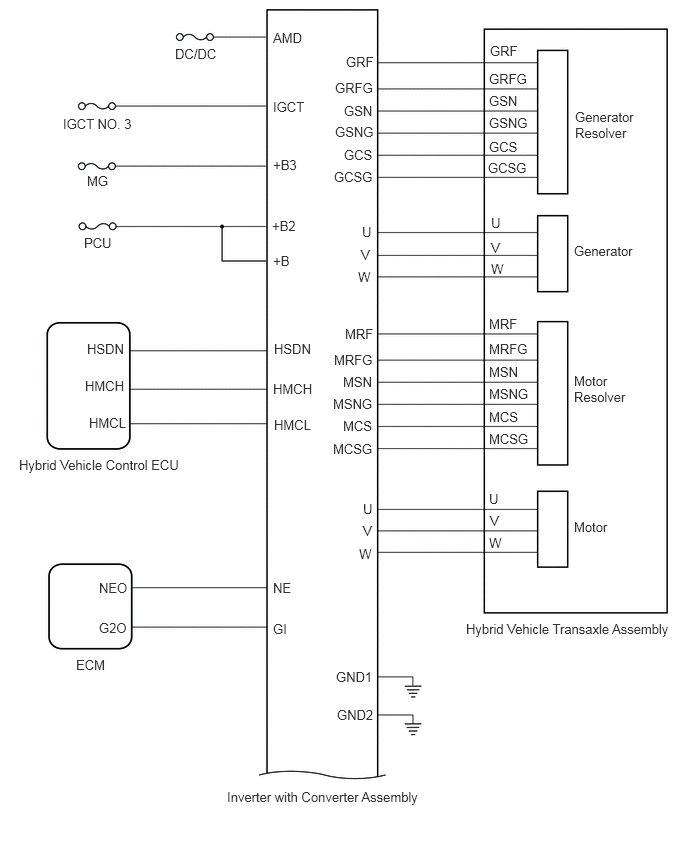

System Diagram [12/2019 - 11/2023]
>>

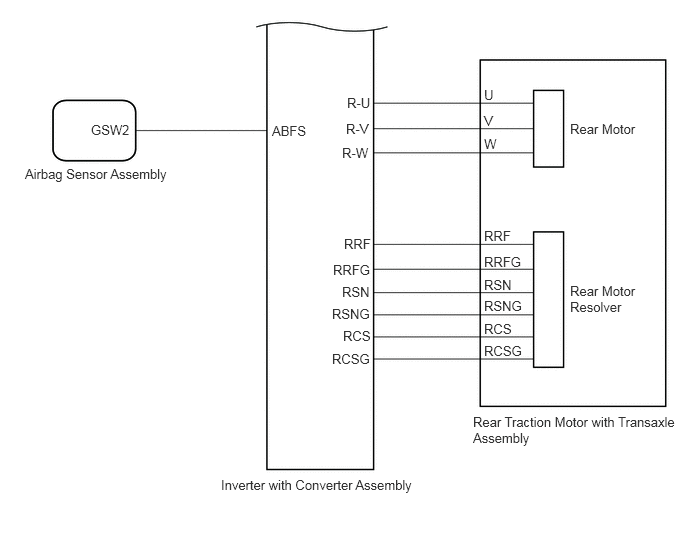

System Diagram [12/2019 - 11/2023]
System Diagram [12/2019 - 11/2023]
WARNING:
This page is about a different variant/trim than selected.
