Section 20 (Motor Generator Control System (2WD) - Diagnostics - Introduction)
>>
MOTOR GENERATOR CONTROL SYSTEM (for 2WD)
>>

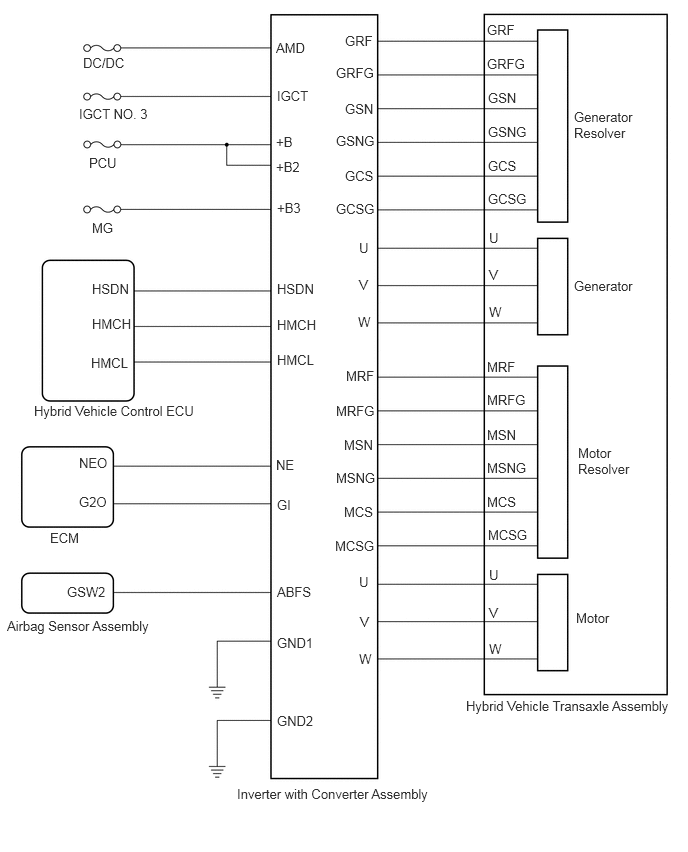

System Diagram [12/2019 - 11/2023]
>>
System Diagram [12/2019 - 11/2023]
System Diagram [12/2019 - 11/2023]
WARNING:
This page is about a different variant/trim than selected.
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
