Parts Location [10/2022 - ]: Illustration

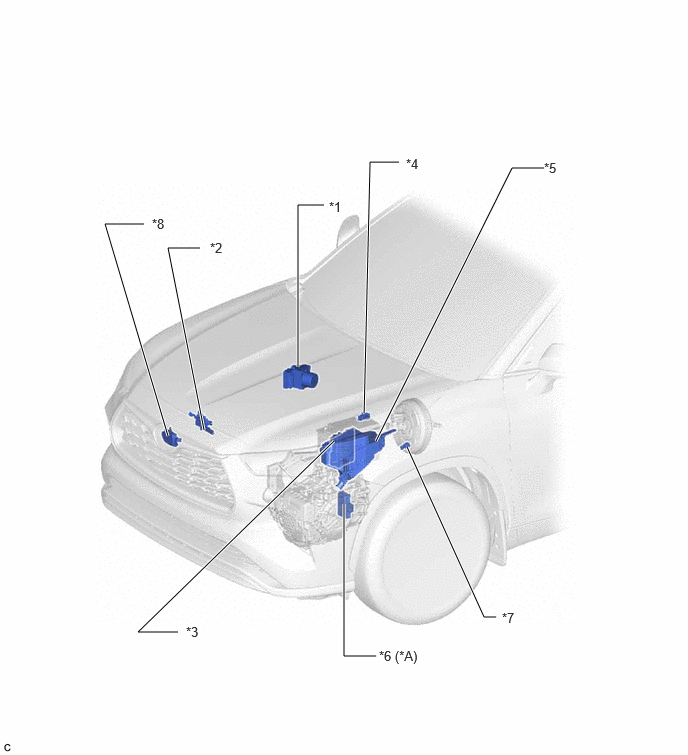

| *A | w/ Stereo Component Amplifier Assembly | - | - |
| *1 | SKID CONTROL ECU (BRAKE ACTUATOR ASSEMBLY) | *2 | ENGINE HOOD COURTESY SWITCH (HOOD LOCK ASSEMBLY) |
| *3 | ECM | *4 | BATTERY STATE SENSOR ASSEMBLY |
| *5 | NO. 1 ENGINE ROOM RELAY BLOCK AND NO. 1 JUNCTION BLOCK ASSEMBLY | *6 | EXTERNAL BACKUP BOOST CONVERTER (ECO RUN VEHICLE CONVERTER ASSEMBLY) |
| *7 | VACUUM SENSOR ASSEMBLY | *8 | MILLIMETER WAVE RADAR SENSOR ASSEMBLY |

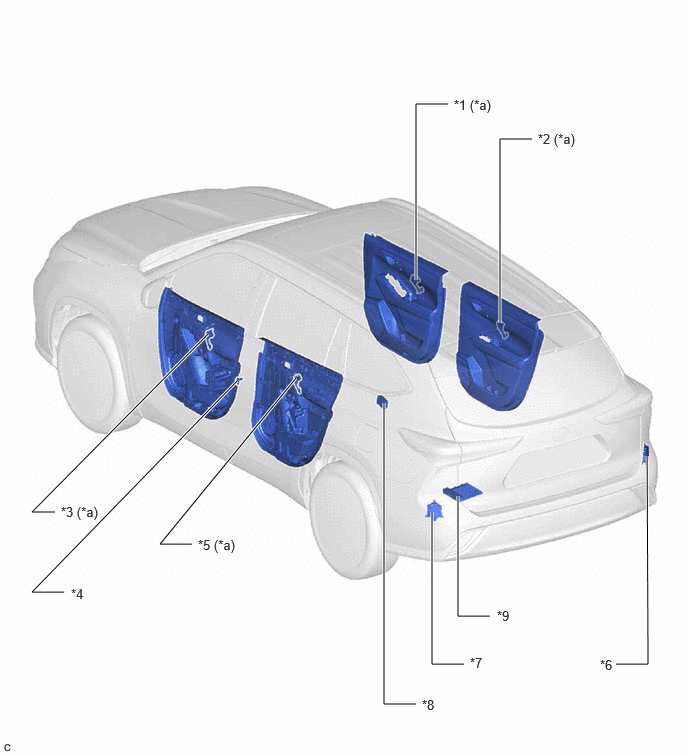

| *a | w/ Ambient Illumination Light | - | - |
| *1 | FRONT DOOR AMBIENT LIGHT RH (FRONT DOOR TRIM BOARD SUB-ASSEMBLY RH) | *2 | REAR DOOR AMBIENT LIGHT RH (REAR DOOR TRIM BOARD SUB-ASSEMBLY RH) |
| *3 | FRONT DOOR AMBIENT LIGHT LH (FRONT DOOR TRIM BOARD SUB-ASSEMBLY LH) | *4 | FRONT DOOR COURTESY LIGHT SWITCH ASSEMBLY LH |
| *5 | REAR DOOR AMBIENT LIGHT LH (REAR DOOR TRIM BOARD SUB-ASSEMBLY LH) | *6 | BLIND SPOT MONITOR SENSOR RH |
| *7 | BLIND SPOT MONITOR SENSOR LH | *8 | TIRE PRESSURE WARNING ECU AND RECEIVER |
| *9 | STEREO COMPONENT AMPLIFIER ASSEMBLY | - | - |

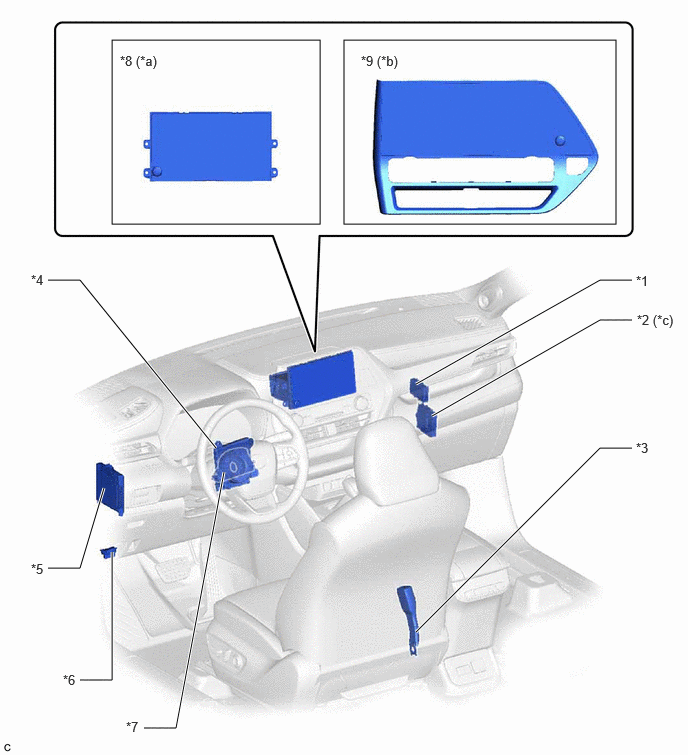

| *a | except 12.3 Inch Display | *b | for 12.3 Inch Display |
| *c | w/ Intuitive Parking Assist System | - | - |
| *1 | CENTRAL GATEWAY ECU (NETWORK GATEWAY ECU) | *2 | CLEARANCE WARNING ECU ASSEMBLY |
| *3 | FRONT SEAT INNER BELT ASSEMBLY LH | *4 | AIR CONDITIONING AMPLIFIER ASSEMBLY |
| *5 | MAIN BODY ECU (MULTIPLEX NETWORK BODY ECU) | *6 | DLC3 |
| *7 | STEERING SENSOR | *8 | RADIO AND DISPLAY RECEIVER ASSEMBLY |
| *9 | RADIO AND DISPLAY RECEIVER ASSEMBLY WITH AIR CONDITIONING CONTROL | - | - |

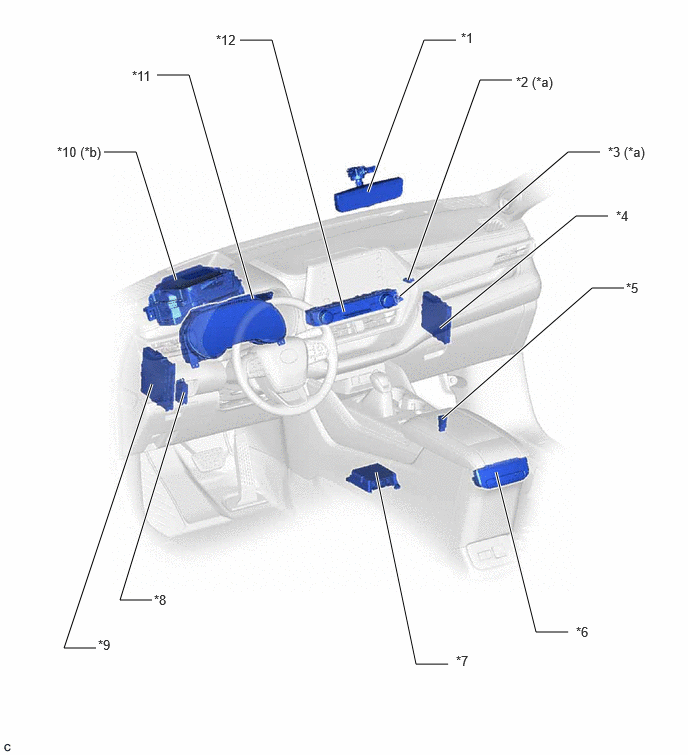

| *a | w/ Ambient Illumination Light | *b | w/ Headup Display System |
| *1 | INNER REAR VIEW MIRROR ASSEMBLY | *2 | FRONT PASSENGER SIDE TRAY ILLUMINATION LIGHT (NO. 1 INSTRUMENT PANEL LIGHT SUB-ASSEMBLY) |
| *3 | CENTER TRAY ILLUMINATION LIGHT (NO. 1 INSTRUMENT PANEL LIGHT SUB-ASSEMBLY) | *4 | CERTIFICATION ECU (SMART KEY ECU ASSEMBLY) |
| *5 | ECO-RUN CANCEL SWITCH ASSEMBLY | *6 | NO. 2 AIR CONDITIONING CONTROL ASSEMBLY |
| *7 | AIRBAG SENSOR ASSEMBLY | *8 | ENGINE STOP AND START SOLENOID FILTER |
| *9 | ENGINE STOP AND START ECU | *10 | METER MIRROR SUB-ASSEMBLY |
| *11 | COMBINATION METER ASSEMBLY | *12 | AIR CONDITIONING CONTROL ASSEMBLY |
