Parts Location [09/2020 - 11/2023]: Illustration

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

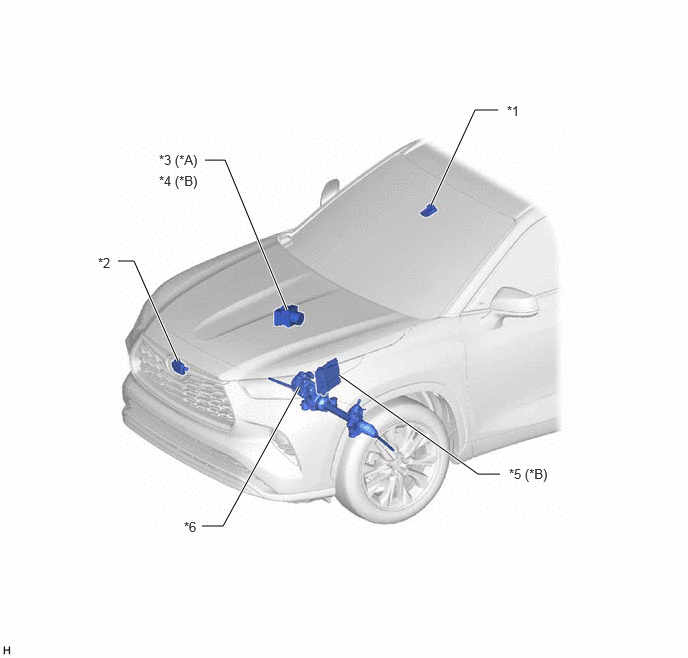

*A	for HV Model	*B	for Gasoline Model
*1	FORWARD RECOGNITION CAMERA	*2	MILLIMETER WAVE RADAR SENSOR ASSEMBLY
*3	NO. 2 SKID CONTROL ECU (BRAKE ACTUATOR ASSEMBLY)	*4	SKID CONTROL ECU (BRAKE ACTUATOR ASSEMBLY)
*5	ECM	*6	POWER STEERING ECU (RACK AND PINION POWER STEERING GEAR ASSEMBLY)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

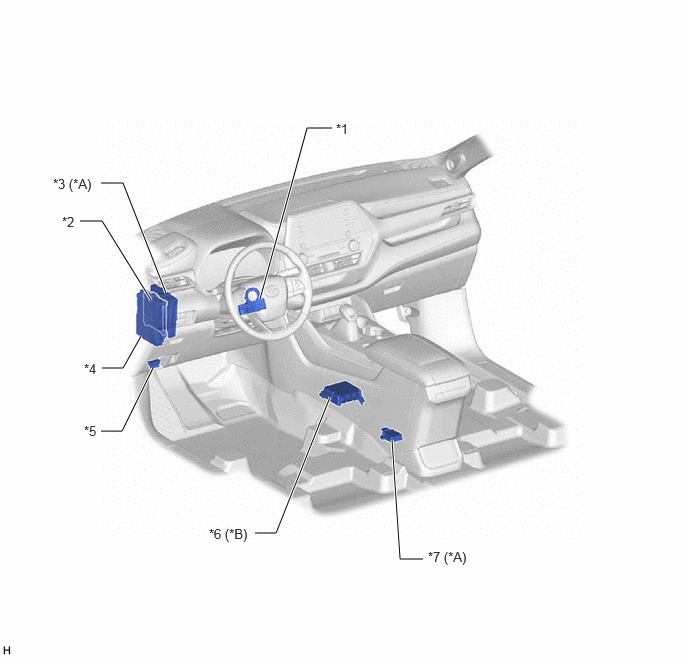

*A	for HV Model	*B	for Gasoline Model
*1	STEERING SENSOR	*2	MAIN BODY ECU (MULTIPLEX NETWORK BODY ECU)
*3	HYBRID VEHICLE CONTROL ECU	*4	INSTRUMENT PANEL JUNCTION BLOCK ASSEMBLY - ECU-IG1 NO. 4 FUSE
*5	DLC3	*6	AIRBAG SENSOR ASSEMBLY
*7	YAW RATE SENSOR	-	-
