Parts Location [11/2023 - ]: Illustration

GTY992972Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
*A for HV Model *B for Gasoline Model
*1 FORWARD RECOGNITION CAMERA *2 MILLIMETER WAVE RADAR SENSOR ASSEMBLY
*3 NO. 2 SKID CONTROL ECU (BRAKE ACTUATOR ASSEMBLY) *4 SKID CONTROL ECU (BRAKE ACTUATOR ASSEMBLY)
*5 ECM *6 POWER STEERING ECU (RACK AND PINION POWER STEERING GEAR ASSEMBLY)

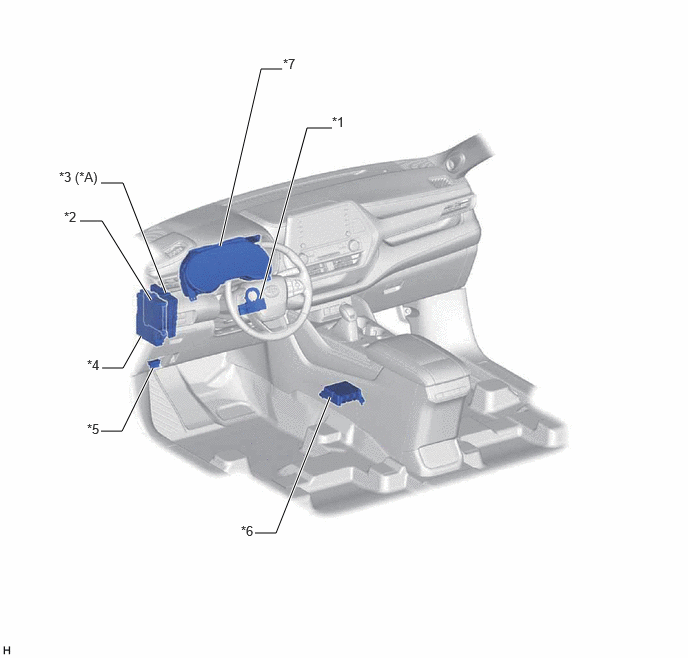

GTY1180019Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
*A for HV Model - -
*1 STEERING SENSOR *2 MAIN BODY ECU (MULTIPLEX NETWORK BODY ECU)
*3 HYBRID VEHICLE CONTROL ECU *4 POWER DISTRIBUTION BOX ASSEMBLY
- ECU-IGR NO. 3 FUSE
*5 DLC3 *6 AIRBAG SENSOR ASSEMBLY
- YAW RATE SENSOR
*7 COMBINATION METER ASSEMBLY - -
