Parts Location [12/2019 - 11/2023]: Illustration

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

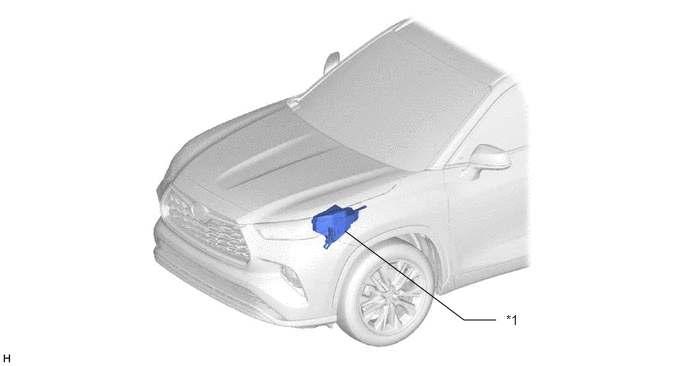

*1

NO. 1 ENGINE ROOM RELAY BLOCK AND NO. 1 JUNCTION BLOCK ASSEMBLY - S/HTR F/L FUSE - S/HTR F/R FUSE - S/HTR F/L RELAY - S/HTR F/R RELAY

-

-

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

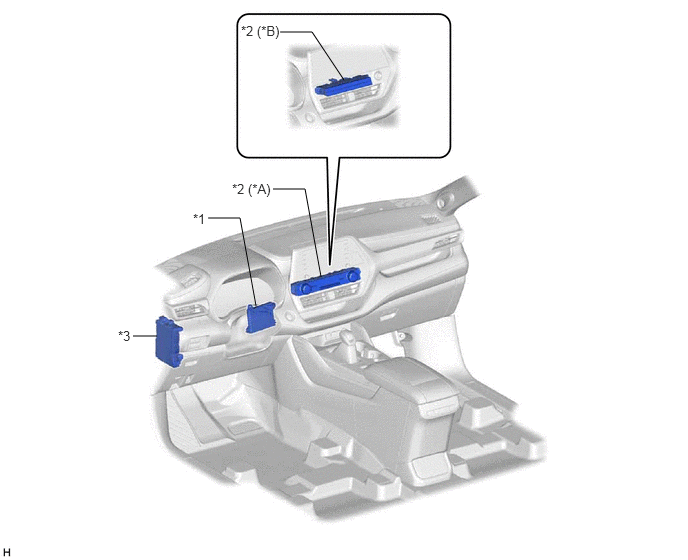

*A	For 8 Inch Display	*B	For 12.3 Inch Display
*1	AIR CONDITIONING AMPLIFIER ASSEMBLY	*2	CLIMATE CONTROL SWITCH (AIR CONDITIONING CONTROL ASSEMBLY)
*3	INSTRUMENT PANEL JUNCTION BLOCK ASSEMBLY - ECU-IG1 NO. 3 FUSE - ECU-IG1 NO. 4 FUSE	-	-

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

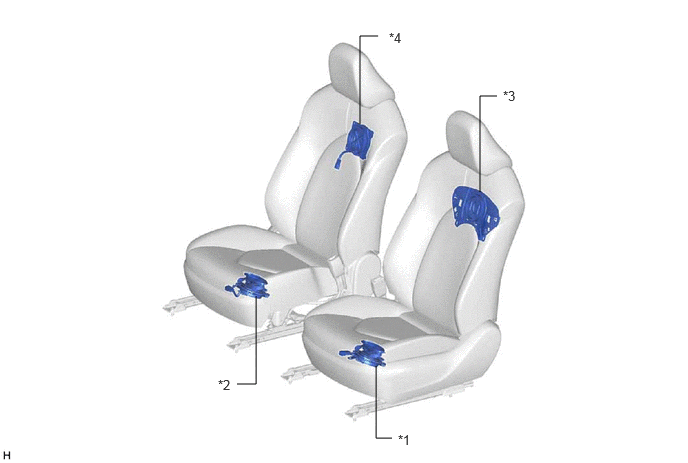

*1	SEAT CUSHION CLIMATE CONTROL BLOWER ASSEMBLY LH	*2	SEAT CUSHION CLIMATE CONTROL BLOWER ASSEMBLY RH
*3	SEATBACK CLIMATE CONTROL BLOWER LH	*4	SEATBACK CLIMATE CONTROL BLOWER RH (SEPARATE TYPE FRONT SEATBACK SPRING ASSEMBLY (RH))
