Parts Location [11/2023 - ]: Illustration

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

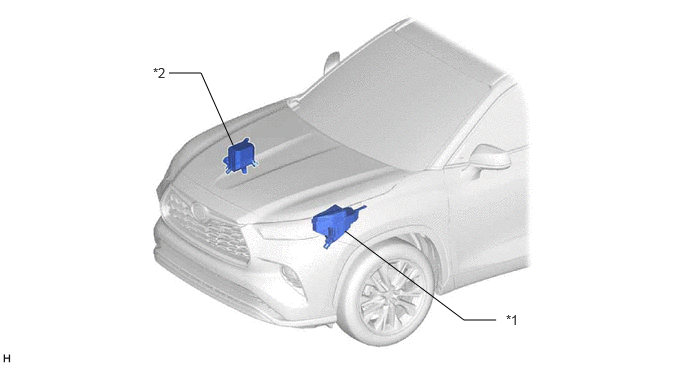

*1

NO. 1 ENGINE ROOM RELAY BLOCK AND NO. 1 JUNCTION BLOCK ASSEMBLY - S/HTR F/L FUSE - S/HTR F/R FUSE - S/HTR F/L RELAY - S/HTR F/R RELAY

*2

NO. 2 ENGINE ROOM RELAY BLOCK AND NO. 2 JUNCTION BLOCK ASSEMBLY - ECU-IGP NO. 3 FUSE

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

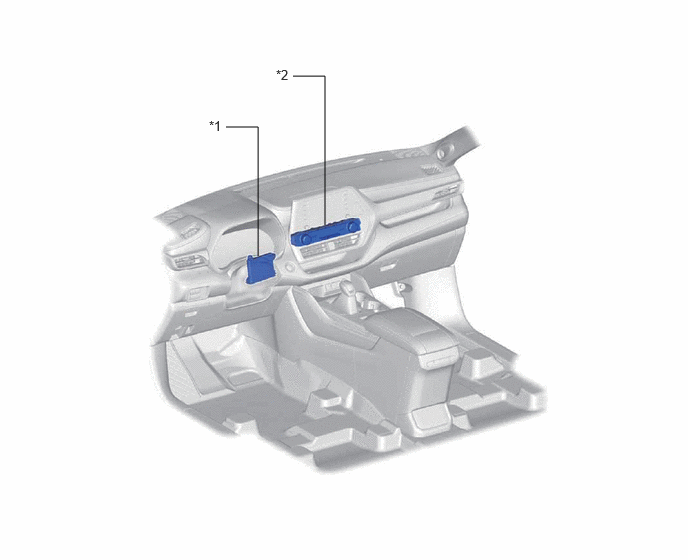

*1

AIR CONDITIONING AMPLIFIER ASSEMBLY

*2

CLIMATE CONTROL SWITCH (AIR CONDITIONING CONTROL ASSEMBLY)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*1	SEAT CUSHION CLIMATE CONTROL BLOWER ASSEMBLY LH	*2	SEAT CUSHION CLIMATE CONTROL BLOWER ASSEMBLY RH
*3	SEATBACK CLIMATE CONTROL BLOWER LH	*4	SEATBACK CLIMATE CONTROL BLOWER RH
