Climate Control Seat System
>>
Climate Control Seat System does not Operate [11/2023 - ]
>>
Wiring Diagram
Climate Control Seat System does not Operate [11/2023 - ]: Wiring Diagram

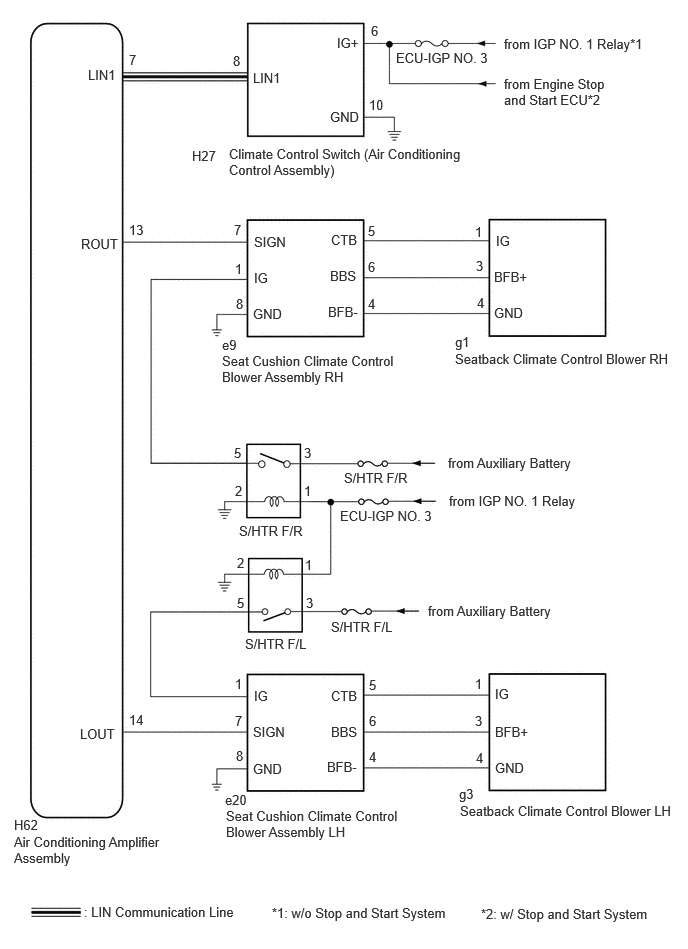

Fig 1: Climate Control Seat System Does Not Operate [11/2023 - ]
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
