System Diagram [12/2019 - 11/2023]

  1. for Front Seat

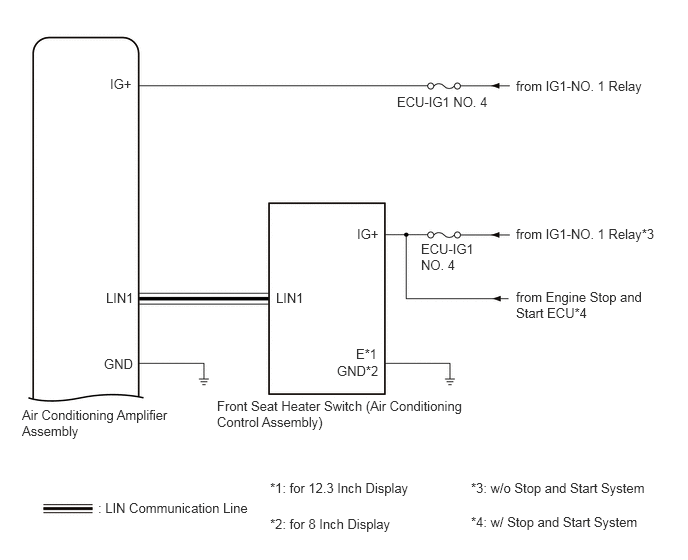

    GTY878989Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

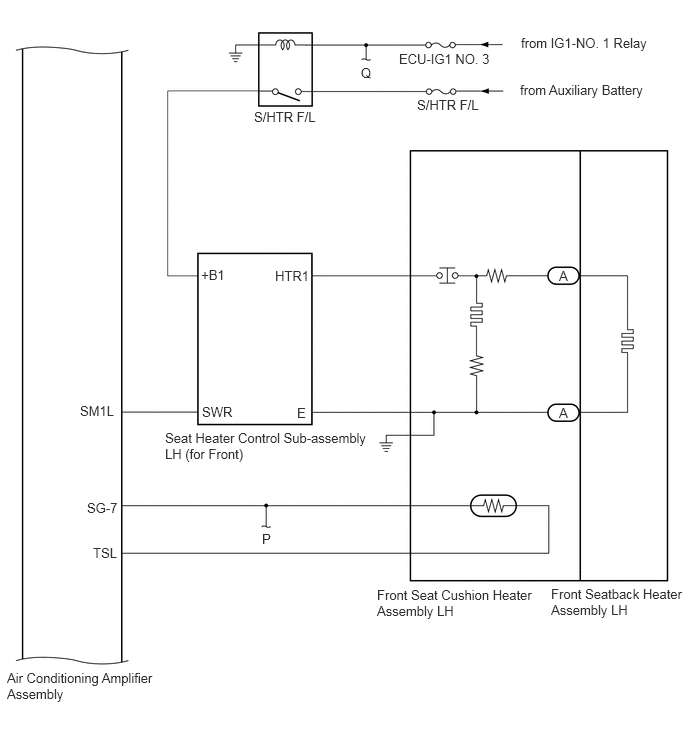

    GTY902906Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

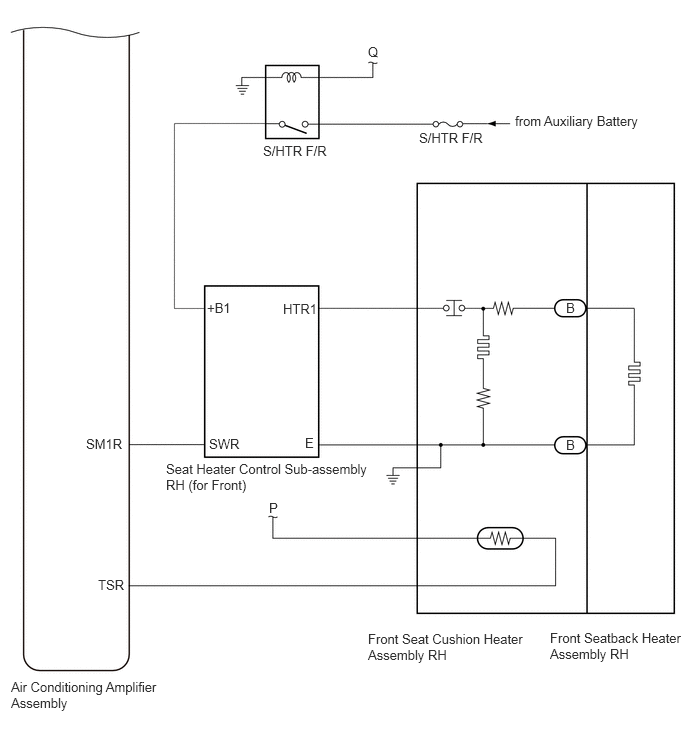

    GTY906651Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. for Rear Seat (w/ Rear Seat Heater)

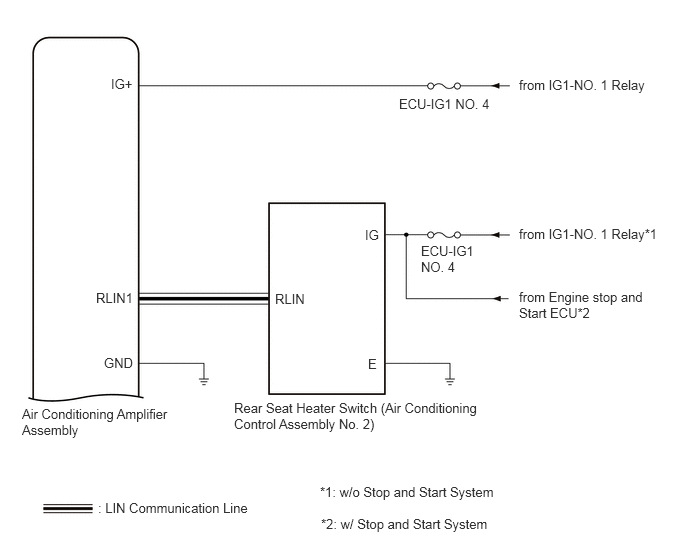

    GTY878996Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

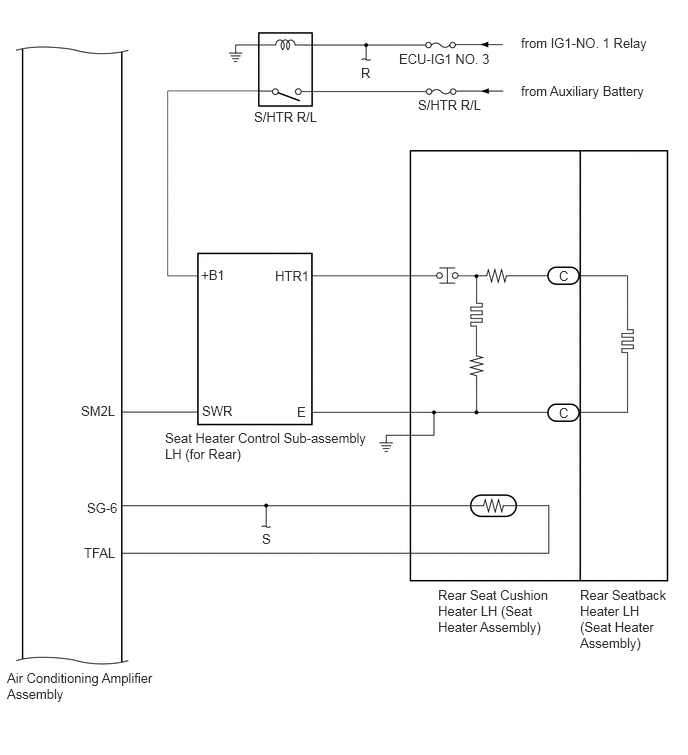

    GTY902905Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

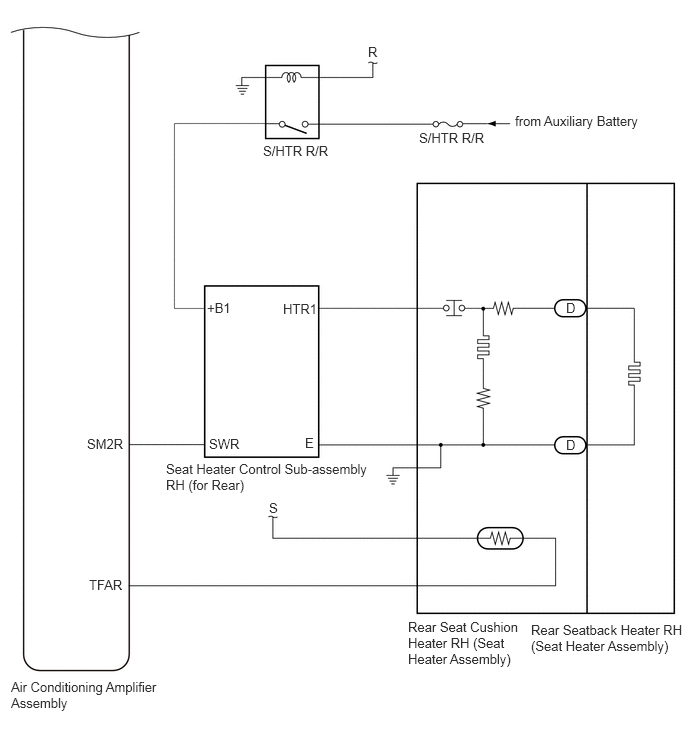

    GTY906650Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
