Seat Heater System - Diagnostics - Introduction
>>
Seat Heater System
>>
System Diagram [11/2023 - ]
>>
System Diagram [11/2023 - ]
System Diagram [11/2023 - ]

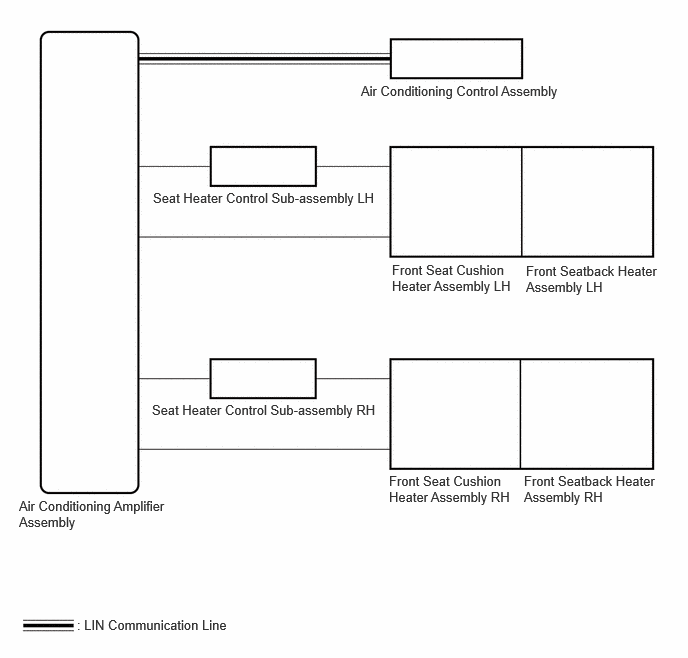

FRONT SEAT HEATER
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

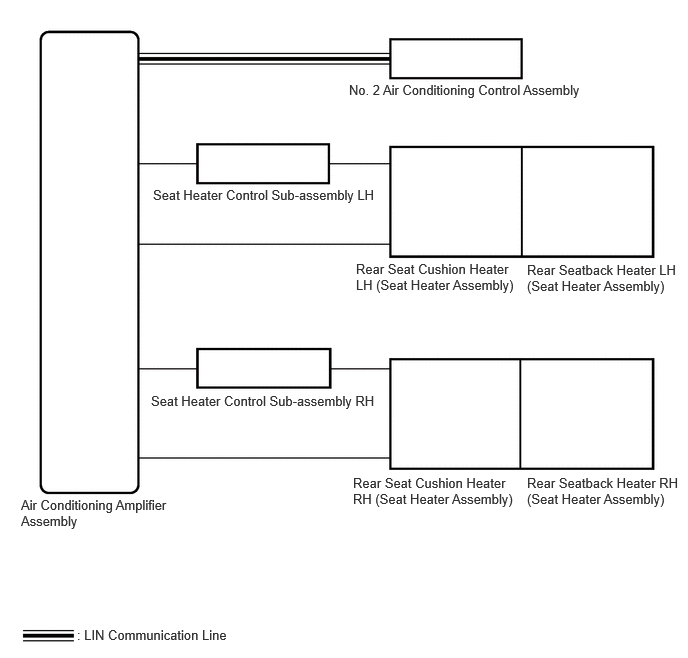

REAR SEAT HEATER (w/ Rear Seat Heater)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
