Terminals Of Ecu [10/2022 - 11/2023]

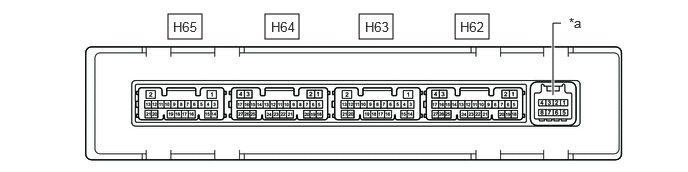

- CHECK AIR CONDITIONING AMPLIFIER ASSEMBLY
*a This connector is not used by the seat heater system. Refer to Air Conditioning System. - - - Disconnect the H62 air conditioning amplifier assembly connector.
- Measure the voltage and resistance according to the value(s) in the table below.
HINT:
Measure the values on the wire harness side with the connector disconnected.
Terminal No. (Symbol) Terminal Description Condition Specified Condition H62-6 (IG+) - H62-17 (GND) IG power supply Ignition switch off Below 1 V H62-6 (IG+) - H62-17 (GND) IG power supply Ignition switch ON 11 to 14 V H62-5 (B) - H62-17 (GND) Auxiliary battery power supply Ignition switch off*1
Always*211 to 14 V H62-17 (GND) - Body ground Ground Always Below 1 Ω - *1: for HV Model
- *2: for Gasoline Model
- Reconnect the H62 air conditioning amplifier assembly connector.
- Measure the voltage and check for pulses generation according to the value(s) in the table below.
Terminal No. (Symbol) Terminal Description Condition Specified Condition H64-12 (SM1R) - H62-17 (GND) Front seat heater control signal - Ignition switch ON
- Front seat heater switch (air conditioning control assembly) on (LO) (heater position)
Below 1 V H64-13 (SM1L) - H62-17 (GND) Front seat heater control signal - Ignition switch ON
- Front seat heater switch (air conditioning control assembly) on (LO) (heater position)
Below 1 V H64-23 (SM2R) - H62-17 (GND) Rear seat heater control signal - Ignition switch ON
- Rear seat heater switch (Air conditioning control assembly No. 2) (RH) on
Below 1 V H64-24 (SM2L) - H62-17 (GND) Rear seat heater control signal - Ignition switch ON
- Rear seat heater switch (Air conditioning control assembly No. 2) (LH) on
Below 1 V H62-7 (LIN1) - Body ground Seat heater switch signal Ignition switch ON Pulse generation
- CHECK FRONT SEAT HEATER SWITCH (AIR CONDITIONING CONTROL ASSEMBLY)
- Disconnect the H27 front seat heater switch (air conditioning control assembly) connector.
- Measure the voltage and resistance according to the value(s) in the table below.
HINT:
Measure the values on the wire harness side with the connector disconnected.
Terminal No. (Symbol) Terminal Description Condition Specified Condition H27-4 (IG+) - H27-8 (E)*1 IG power supply Ignition switch off Below 1 V H27-6 (IG+) - H27-10 (GND)*2 H27-4 (IG+) - H27-8 (E)*1 IG power supply Ignition switch ON 11 to 14 V H27-6 (IG+) - H27-10 (GND)*2 H27-8 (E) - Body ground*1 Ground Always Below 1 Ω H27-10 (GND) - Body ground*2 - *1: for 12.3 Inch Display
- *2: for 8 Inch Display
- Reconnect the H27 front seat heater switch (air conditioning control assembly) connector.
- Check for pulses according to the value(s) in the table below.
Terminal No. (Symbol) Terminal Description Condition Specified Condition H27-3 (LIN1) - H27-8 (E)*1 Front seat heater switch signal Ignition switch ON Pulse generation H27-8 (LIN1) - H27-10 (GND)*2 - *1: for 12.3 Inch Display
- *2: for 8 Inch Display
- CHECK REAR SEAT HEATER SWITCH (AIR CONDITIONING CONTROL ASSEMBLY NO. 2)
for HV Model: Refer to TERMINALS OF ECU [10/2022 - 11/2023]
for Gasoline Model: Refer to TERMINALS OF ECU [10/2022 - 11/2023]
