Seat Heater System - Diagnostic Codes & Symptom Tests
>>
Seat Heater System
>>
Seat Heater for Front Left Seat does not Operate [12/2019 - 11/2023]
>>

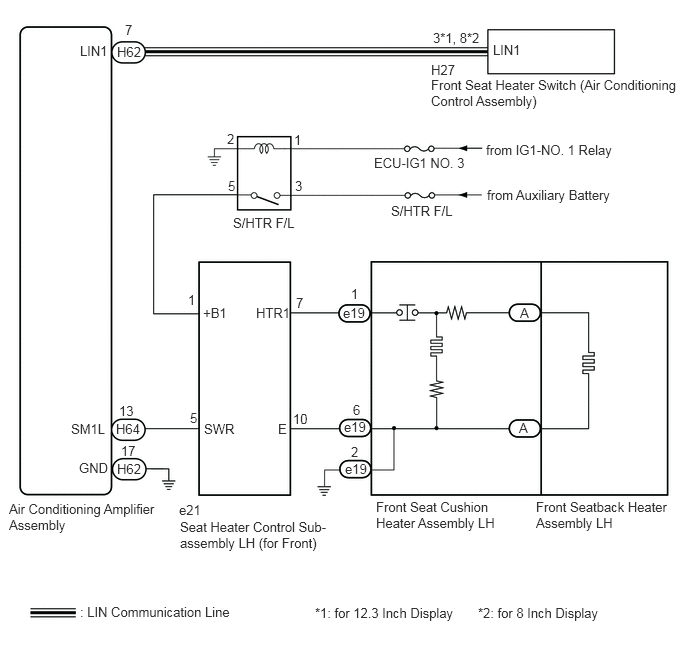

Wiring Diagram
Seat Heater for Front Left Seat does not Operate [12/2019 - 11/2023]: Wiring Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
