Seat Heater System - Diagnostic Codes & Symptom Tests
>>
Seat Heater System
>>
Seat Heater for Rear Right Seat does not Operate [11/2023 - ]
>>
Wiring Diagram

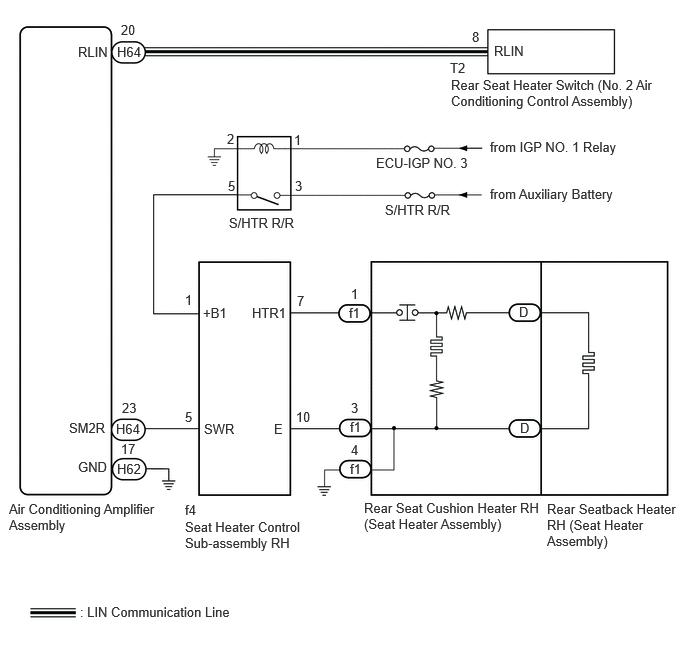

Seat Heater for Rear Right Seat does not Operate [11/2023 - ]: Wiring Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
