Seat Heater System - Diagnostic Codes & Symptom Tests
>>
Seat Heater System
>>
Seat Heater for Rear Left Seat does not Operate [10/2022 - 11/2023]
>>
Wiring Diagram

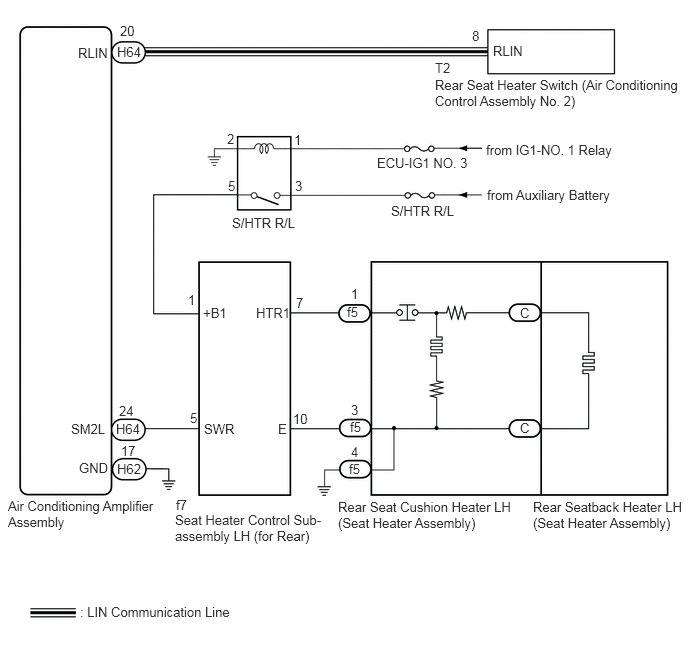

Seat Heater for Rear Left Seat does not Operate [10/2022 - 11/2023]: Wiring Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
