Components [12/2019 - ]

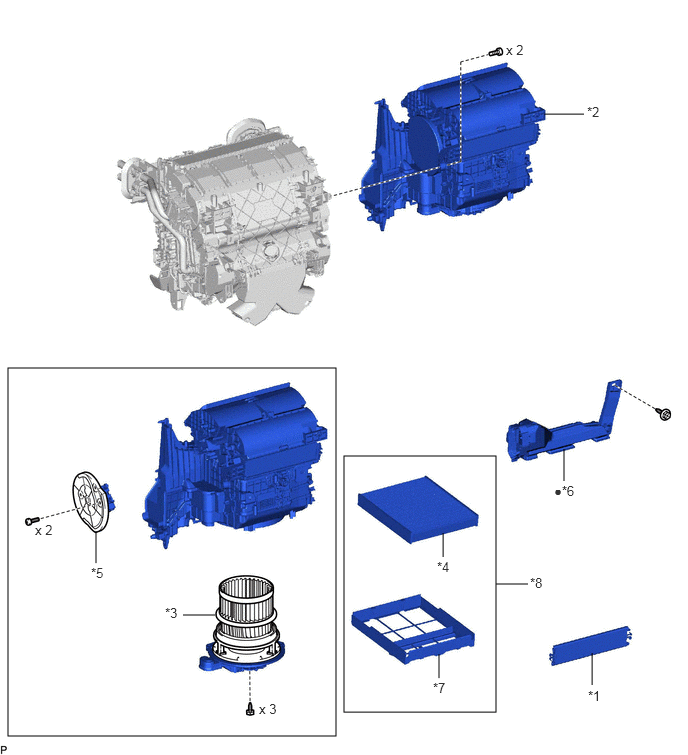

Fig 1: Blower Unit Replacement Components
GTY897448Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout Description Callout Description
*1 AIR FILTER COVER PLATE *2 BLOWER ASSEMBLY
*3 BLOWER MOTOR WITH FAN SUB-ASSEMBLY *4 CLEAN AIR FILTER
*5 NO. 1 BLOWER DAMPER SERVO SUB-ASSEMBLY *6 NO. 3 AIR DUCT SUB-ASSEMBLY
*7 AIR FILTER CASE *8 AIR FILTER SUB-ASSEMBLY
• Non-reusable part - -
