Disassembly [12/2019 - ]: Procedure

  1. REMOVE AIR FILTER COVER PLATE

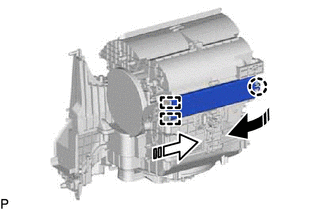

    1. Disengage the claw and 2 guides as indicated by the arrows, in the order shown in the illustration to remove the air filter cover plate.
      GTY851184Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction (1)
      Remove in this Direction (2)
  2. REMOVE CLEAN AIR FILTER

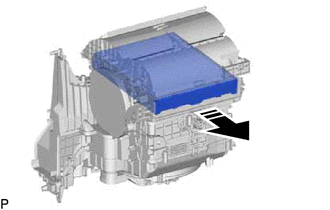

    1. Remove the air filter sub-assembly as shown in the illustration.
      GTY839893Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction

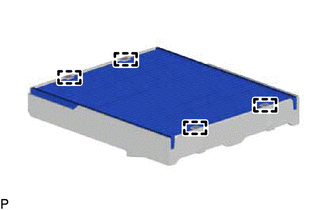

    2. Disengage the 4 guides to remove the clean air filter from the air filter case.
      GTY923890Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  3. REMOVE BLOWER MOTOR WITH FAN SUB-ASSEMBLY

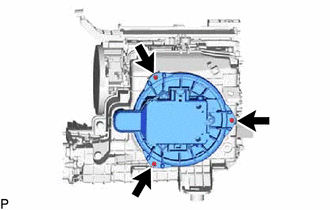

    1. Remove the 3 screws and blower motor with fan sub-assembly.
      GTY945090Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  4. REMOVE NO. 1 BLOWER DAMPER SERVO SUB-ASSEMBLY

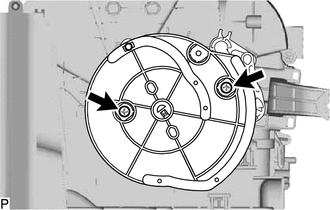

    1. Remove the 2 screws and No. 1 blower damper servo sub-assembly.
      GTY923889Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
