Inspection [12/2019 - ]: Procedure

  1. INSPECT REAR BLOWER MOTOR WITH FAN SUB-ASSEMBLY
    1. Connect a positive (+) lead from the auxiliary battery to terminal 2 and a negative (-) lead to terminal 1, and check that the motor operates.

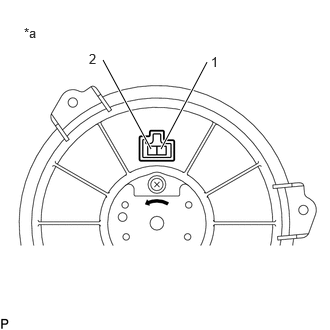

      GTY901417Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Component without harness connected
      (Rear Blower Motor with Fan Sub-assembly)

      OK

      The rear blower motor with fan sub-assembly operates smoothly.

      1. If the result is not as specified, replace the rear blower motor with fan sub-assembly.
