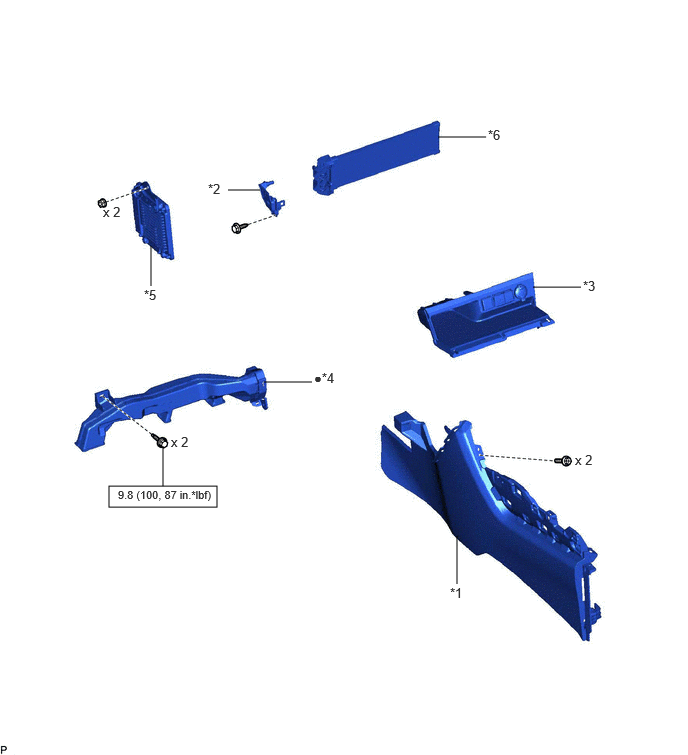

Components [12/2019 - 11/2023]
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002| Callout | Description | Callout | Description |
|---|---|---|---|
| *1 | FRONT CONSOLE BOX INSERT | *2 | HEATER COVER |
| *3 | LOWER CENTER INSTRUMENT PANEL FINISH PANEL | *4 | NO. 4 AIR DUCT SUB-ASSEMBLY |
| *5 | PARKING ASSIST ECU WITH BRACKET | *6 | QUICK HEATER ASSEMBLY |
|
N.m (kgf/cm, ft.lbf): Specified torque | • | Non-reusable part |
