Components [12/2019 - 10/2022]

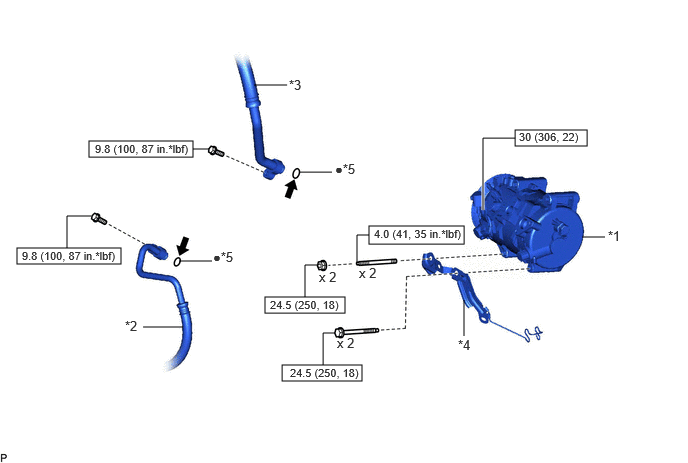

Fig 1: Compressor (For 2GR-FKS) Replacement Components With Torque Specifications [12/2019 - 10/2022] (1 Of 2)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002| Callout | Description | Callout | Description |
|---|---|---|---|
| *1 | COMPRESSOR AND MAGNETIC CLUTCH | *2 | DISCHARGE HOSE SUB-ASSEMBLY |
| *3 | SUCTION HOSE SUB-ASSEMBLY | *4 | BRACKET |
| *5 | O-RING | - | - |
|
N.m (kgf/cm, ft.lbf): Specified torque | • | Non-reusable part |
|
Compressor oil ND-OIL 12 or equivalent | - | - |

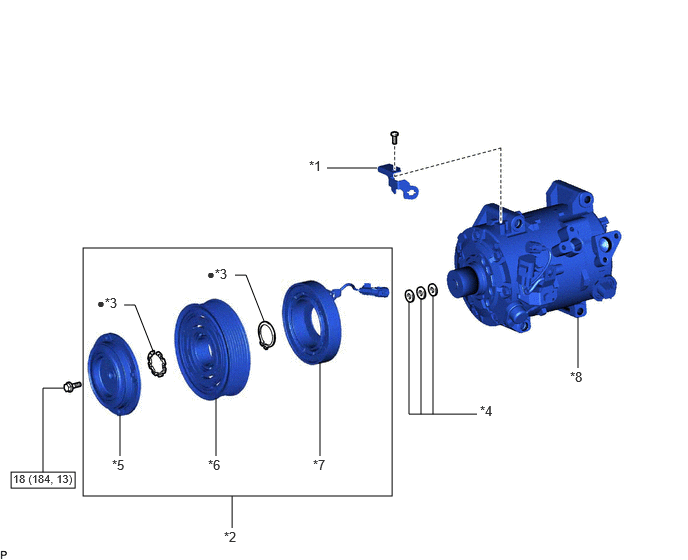

Fig 2: Compressor (For 2GR-FKS) Replacement Components With Torque Specifications [12/2019 - 10/2022] (2 Of 2)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002| Callout | Description | Callout | Description |
|---|---|---|---|
| *1 | COOLER COMPRESSOR BRACKET | *2 | MAGNET CLUTCH ASSEMBLY |
| *3 | SNAP RING | *4 | MAGNET CLUTCH WASHER |
| *5 | MAGNET CLUTCH HUB | *6 | MAGNET CLUTCH ROTOR |
| *7 | MAGNET CLUTCH STATOR | *8 | COMPRESSOR ASSEMBLY |
|
N.m (kgf/cm, ft.lbf): Specified torque | • | Non-reusable part |
