Disassembly [12/2019 - 10/2022]: Procedure

  1. REMOVE COOLER COMPRESSOR BRACKET
    1. Disengage the clamp.
      GTY698992Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the screw and cooler compressor bracket.
  2. REMOVE MAGNET CLUTCH ASSEMBLY
    1. Secure the compressor and magnetic clutch in a vise between aluminum plates.
      GTY701036Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

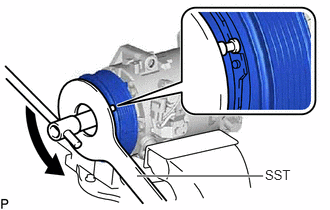

    2. Using SST, hold the magnet clutch hub.
      • SST: 09985-00270
    3. Remove the bolt, magnet clutch hub and magnet clutch washer(s).

      HINT:

      There is no set number of magnet clutch washers that are used for adjusting clutch clearance.

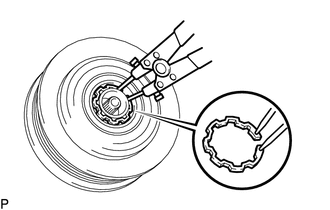

    4. Using a snap ring expander, remove the snap ring and magnet clutch rotor.
      GTY698971Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      NOTE:

      Do not damage the seal cover of the bearing when removing the snap ring.

    5. Disconnect the connector.

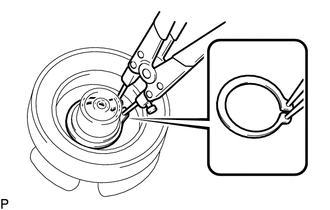

    6. Using a snap ring expander, remove the snap ring and magnet clutch stator.
      GTY698970Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
