Components [12/2019 - ]

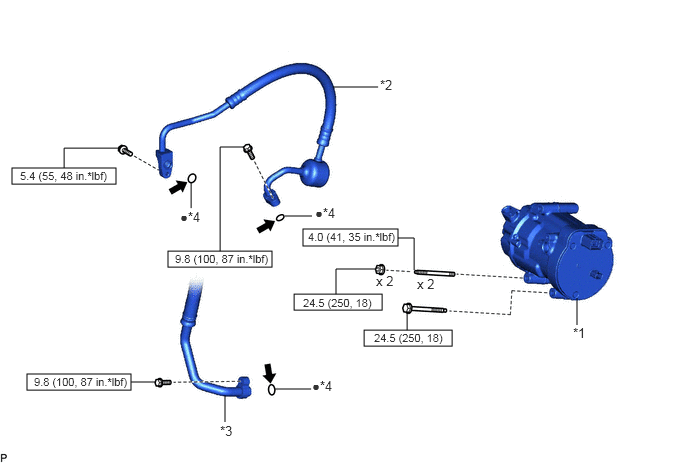

Fig 1: Compressor (For A25A-FXS) Replacement Components With Torque Specifications
GTY845510Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout Description Callout Description
*1 COMPRESSOR WITH MOTOR ASSEMBLY *2 DISCHARGE HOSE SUB-ASSEMBLY
*3 SUCTION HOSE SUB-ASSEMBLY *4 O-RING
N.m (kgf/cm, ft.lbf): Specified torque • Non-reusable part
Compressor oil ND-OIL 11 or equivalent - -
