Components [10/2022 - 11/2023]

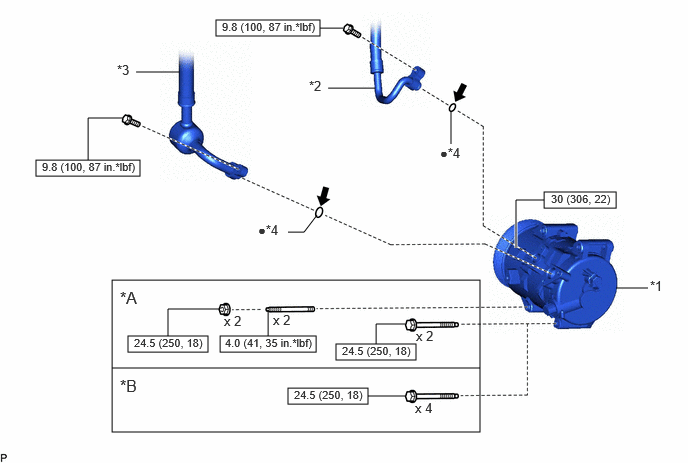

Fig 1: Compressor (For T24A-FTS) Replacement Components With Torque Specifications [10/2022 - 11/2023]
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002| Callout | Description | Callout | Description |
|---|---|---|---|
| *A | for Type A | *B | for Type B |
| *1 | COMPRESSOR ASSEMBLY WITH PULLEY | *2 | NO. 1 COOLER REFRIGERANT DISCHARGE HOSE |
| *3 | SUCTION HOSE SUB-ASSEMBLY | *4 | O-RING |
|
N.m (kgf/cm, ft.lbf): Specified torque | • | Non-reusable part |
|
Compressor oil ND-OIL 12 or equivalent | - | - |
