Removal [10/2022 - 11/2023]: Procedure

  1. RECOVER REFRIGERANT FROM REFRIGERATION SYSTEM

    Refer to PROCEDURE - Step 5

  2. REMOVE RADIATOR ASSEMBLY

    Refer to REMOVAL [10/2022 - 11/2023]

  3. REMOVE V-RIBBED BELT

    Refer to REMOVAL [10/2022 - ]

  4. DISCONNECT SUCTION HOSE SUB-ASSEMBLY

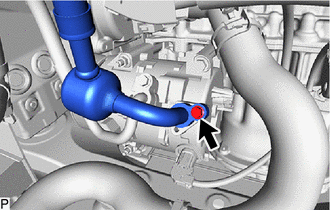

    1. Remove the bolt and disconnect the suction hose sub-assembly from the compressor assembly with pulley.
      GTY1119609Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the O-ring from the suction hose sub-assembly.
      NOTE:

      Seal the openings of the disconnected parts using vinyl tape to prevent moisture and foreign matter from entering them.

  5. DISCONNECT NO. 1 COOLER REFRIGERANT DISCHARGE HOSE
    1. Remove the bolt and disconnect the No. 1 cooler refrigerant discharge hose from the compressor assembly with pulley.
      GTY1119611Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the O-ring from the No. 1 cooler refrigerant discharge hose.
      NOTE:

      Seal the openings of the disconnected parts using vinyl tape to prevent moisture and foreign matter from entering them.

  6. REMOVE COMPRESSOR ASSEMBLY WITH PULLEY
    1. Disconnect the connector.
      GTY1121848Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. for Type A:
      1. Remove the 2 bolts and 2 nuts.
        GTY1119603Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      2. Using an E8 "TORX" socket wrench, remove the 2 stud bolts and compressor assembly with pulley.
        GTY1119605Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. for Type B:
      1. Remove the 4 bolts and compressor assembly with pulley.
        GTY1119604Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
