Components [09/2020 - 10/2021]

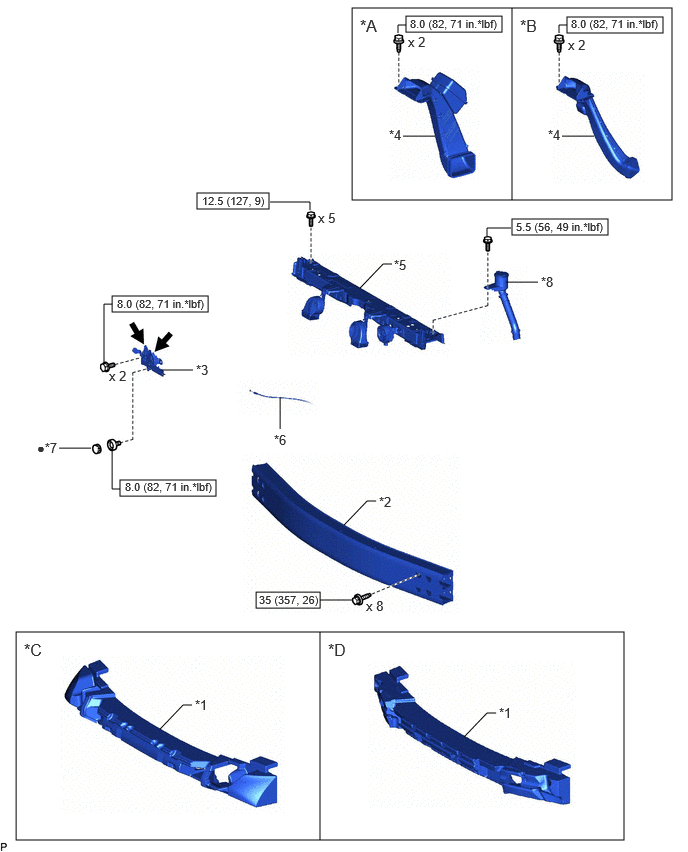

Fig 1: Condenser Replacement Components With Torque Specifications [09/2020 - 10/2021] (1 Of 5)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Callout	Description	Callout	Description
*A	for 2GR-FKS	*B	for A25A-FXS
*C	except Sport Package	*D	for Sport Package
*1	FRONT BUMPER ENERGY ABSORBER	*2	FRONT BUMPER REINFORCEMENT SUB-ASSEMBLY
*3	HOOD LOCK ASSEMBLY	*4	INLET AIR CLEANER ASSEMBLY
*5	UPPER RADIATOR SUPPORT SUB-ASSEMBLY	*6	HOOD LOCK CONTROL CABLE ASSEMBLY
*7	HOOD LOCK NUT CAP	*8	INLET HOSE
	N.m (kgf/cm, ft.lbf): Specified torque	•	Non-reusable part
	MP grease	-	-

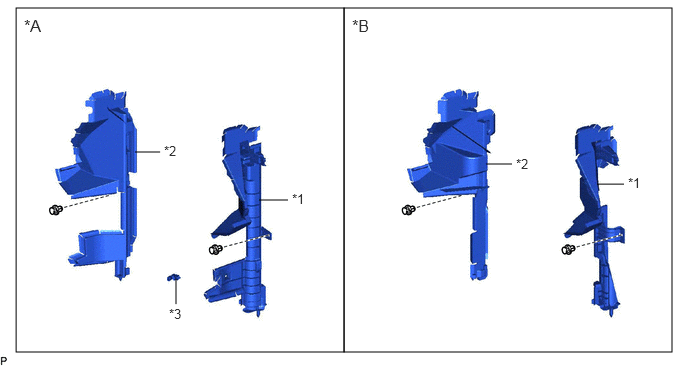

Fig 2: Condenser Replacement Components [09/2020 - 10/2021] (2 Of 5)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Callout	Description	Callout	Description
*A	w/o Grille Shutter	*B	w/ Grille Shutter
*1	NO. 1 RADIATOR AIR GUIDE LH	*2	NO. 1 RADIATOR AIR GUIDE RH
*3	THERMISTOR ASSEMBLY	-	-

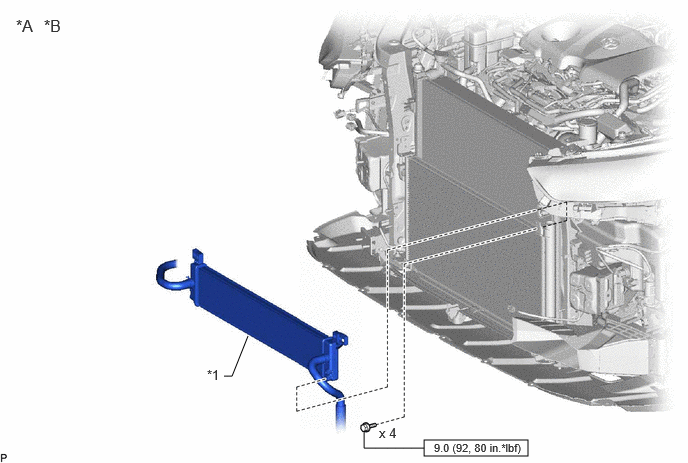

Fig 3: Condenser Replacement Components With Torque Specifications [09/2020 - 10/2021] (3 Of 5)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Callout	Description	Callout	Description
*A	for HV Model	*B	for Inverter Coolant
*1	RADIATOR ASSEMBLY	-	-
	N.m (kgf/cm, ft.lbf): Specified torque	-	-

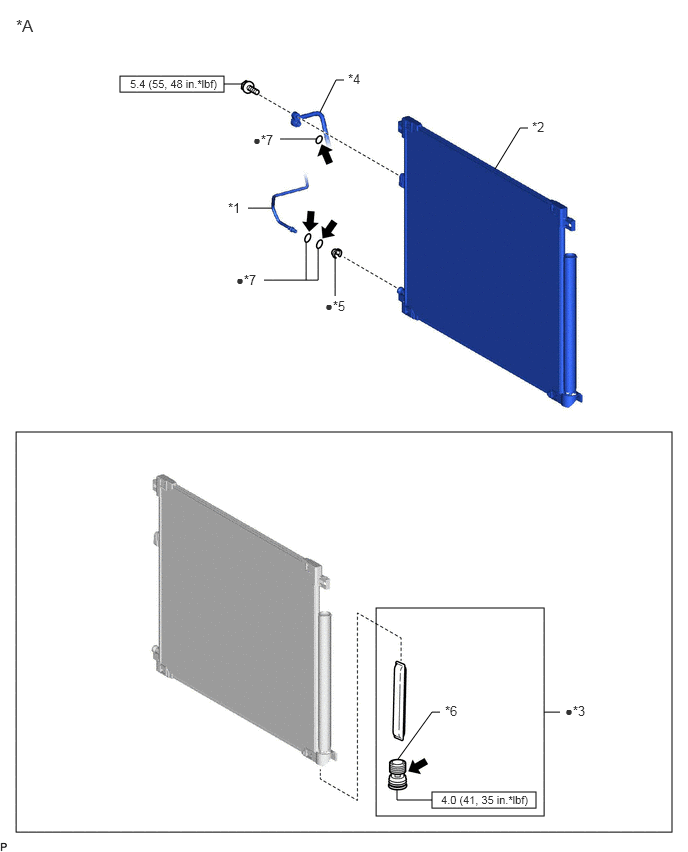

Fig 4: Condenser Replacement Components With Torque Specifications [09/2020 - 10/2021] (4 Of 5)

Callout	Description	Callout	Description
*A	for Gasoline Model	-	-
*1	AIR CONDITIONING TUBE ASSEMBLY	*2	COOLER CONDENSER ASSEMBLY
*3	COOLER DRYER	*4	DISCHARGE HOSE SUB-ASSEMBLY
*5	PIPING CLAMP	*6	CAP
*7	O-RING	-	-
	N.m (kgf/cm, ft.lbf): Specified torque	•	Non-reusable part
	Compressor oil ND-OIL 12 or equivalent	-	-

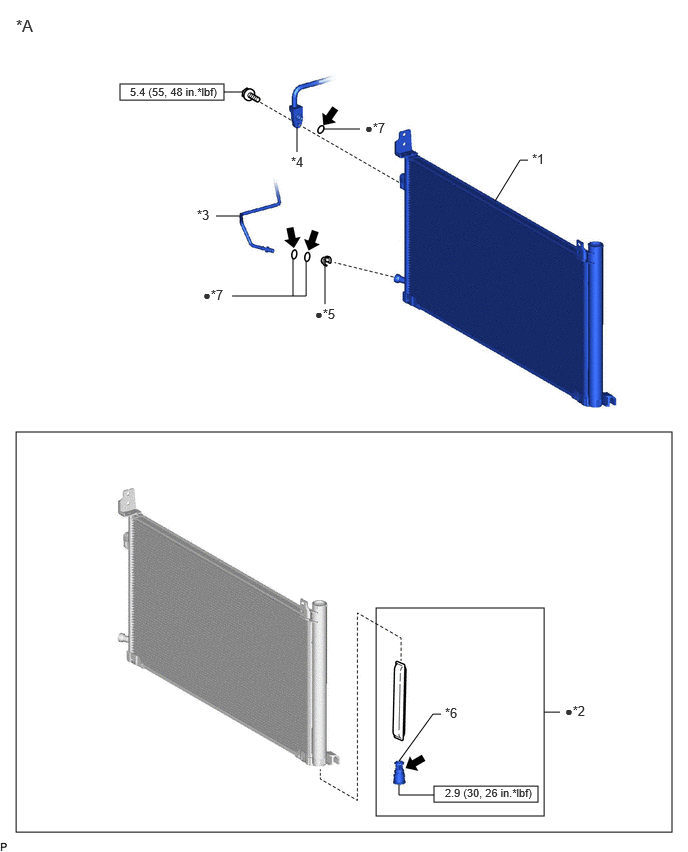

Fig 5: Condenser Replacement Components With Torque Specifications [09/2020 - 10/2021] (5 Of 5)

Callout	Description	Callout	Description
*A	for HV Model	-	-
*1	COOLER CONDENSER ASSEMBLY	*2	COOLER DRYER
*3	COOLER REFRIGERANT LIQUID PIPE A	*4	DISCHARGE HOSE SUB-ASSEMBLY
*5	PIPING CLAMP	*6	CAP
*7	O-RING	-	-
	N.m (kgf/cm, ft.lbf): Specified torque	•	Non-reusable part
	Compressor oil ND-OIL 11 or equivalent	-	-
