Installation [12/2019 - ]: Procedure
- INSTALL CLEAN AIR FILTER
- Engage the 2 guides on the cutout side of the air filter case and then engage the 2 guides as shown in the illustration to install the clean air filter.
*a Cutout *b Rib
Install in this Direction (1)
Install in this Direction (2) NOTE:- Make sure that the "UP" marks are facing the correct direction before installing the clean air filter.
- Make sure that there is no clearance between the clean air filter and air filter case and that the clean air filter is not deformed.

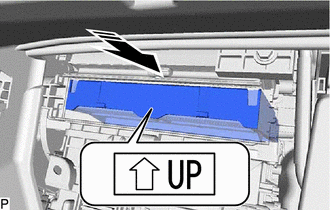

- Install the air filter sub-assembly as shown in the illustration.
Install in this Direction NOTE:Make sure that the "UP" mark is facing the correct direction before installing the air filter sub-assembly.
- Engage the 2 guides on the cutout side of the air filter case and then engage the 2 guides as shown in the illustration to install the clean air filter.
- INSTALL AIR FILTER COVER PLATE
- INSTALL GLOVE COMPARTMENT DOOR SUB-ASSEMBLY

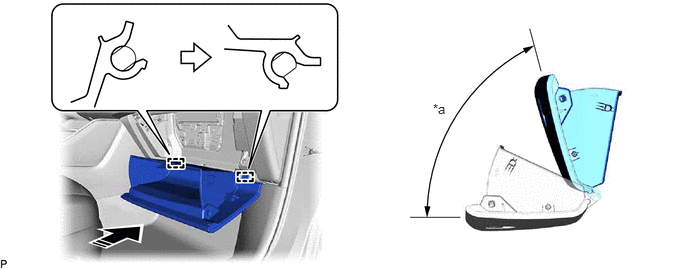

- Hold the glove compartment door assembly at an angle approximately 75° from its closed position and engage the 2 hinges horizontally as shown in the illustration.
*a 75° - - Install in this Direction - - NOTE:Engaging the hinges from an upward angle will deform the hinges. Be sure to install the glove compartment door assembly horizontally.

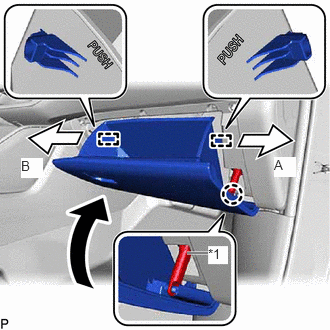

- Slightly bend the stoppers (A) and (B) in the directions indicated by the arrows shown in the illustration and engage the stoppers to install the glove compartment door assembly.
*1 Glove Compartment Door Stopper Sub-assembly - Engage the claw to connect the glove compartment door stopper sub-assembly.
- Hold the glove compartment door assembly at an angle approximately 75° from its closed position and engage the 2 hinges horizontally as shown in the illustration.
