Home >> Toyota >> 2021 >> Highlander LE, 4WD >> Repair and Diagnosis >> Body & Frame >> Mirrors >> Power Mirror Control System (W/ Memory) - Diagnostic Codes & Symptom Tests >> POWER MIRROR CONTROL SYSTEM (w/ Memory) >> Driver Side Power Mirror cannot be Adjusted with Power Mirror Switch [11/2023 - ] >> Wiring Diagram

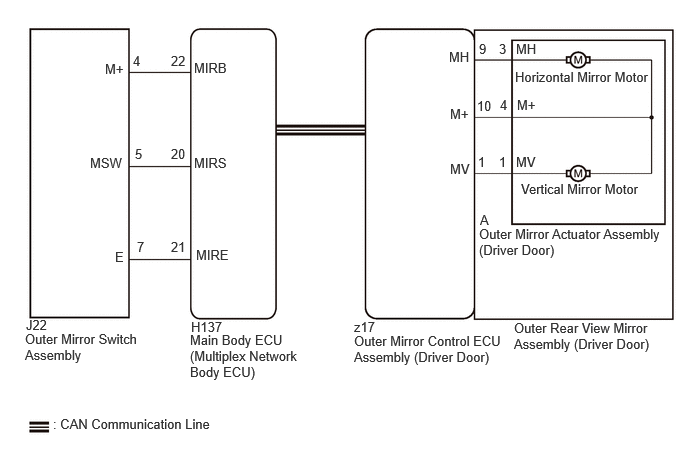

Driver Side Power Mirror cannot be Adjusted with Power Mirror Switch [11/2023 - ]: Wiring Diagram

GTY1178615Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
