Front Passenger Side Power Mirror cannot be Adjusted with Power Mirror Switch [11/2023 - ]: Procedure

  1. READ VALUE USING GTS
    1. Read the Data List according to the display on the GTS.

      Body Electrical > Main Body > Data List

      Tester Display Measurement Item Range Normal Condition Diagnostic Note
      Outer Mirror Control Switch (RH Select) Mirror select switch signal for RH mirror OFF or ON OFF: Mirror select switch off
      ON: Mirror select switch R switch on      		 -
      Outer Mirror Control Switch (LH Select) Mirror select switch signal for LH mirror OFF or ON OFF: Mirror select switch off
      ON: Mirror select switch L switch on      		 -
      Outer Mirror Control Switch (Surface Adjust Right) Mirror adjust switch signal (Right) OFF or ON OFF: Mirror adjust switch not pushed right
      ON: Mirror adjust switch pushed right      		 Check with the mirror select switch L or R selected
      Outer Mirror Control Switch (Surface Adjust Left) Mirror adjust switch signal (Left) OFF or ON OFF: Mirror adjust switch not pushed left
      ON: Mirror adjust switch pushed left      		 Check with the mirror select switch L or R selected
      Outer Mirror Control Switch (Surface Adjust Up) Mirror adjust switch signal (Up) OFF or ON OFF: Mirror adjust switch not pushed up
      ON: Mirror adjust switch pushed up      		 Check with the mirror select switch L or R selected
      Outer Mirror Control Switch (Surface Adjust Down) Mirror adjust switch signal (Down) OFF or ON OFF: Mirror adjust switch not pushed down
      ON: Mirror adjust switch pushed down      		 Check with the mirror select switch L or R selected

      Body Electrical > Main Body > Data List

      Tester Display
      Outer Mirror Control Switch (RH Select)
      Outer Mirror Control Switch (LH Select)
      Outer Mirror Control Switch (Surface Adjust Right)
      Outer Mirror Control Switch (Surface Adjust Left)
      Outer Mirror Control Switch (Surface Adjust Up)
      Outer Mirror Control Switch (Surface Adjust Down)

      OK

      On the GTS screen, ON or OFF is displayed accordingly.

      Result

      Proceed to
      OK
      NG

    Result:

    NG

    See step  4

    Result:

    OK

    See step  2

  2. INSPECT OUTER REAR VIEW MIRROR ASSEMBLY (FRONT PASSENGER DOOR) (MIRROR SURFACE)

    Refer to INSPECTION [12/2019 - ]

    Result

    Proceed to
    OK
    NG

    Result:

    OK

    REPLACE OUTER MIRROR CONTROL ECU ASSEMBLY (FRONT PASSENGER DOOR). Refer to  REMOVAL [12/2019 - ]

    Result:

    NG

    See step  3

  3. INSPECT OUTER REAR VIEW MIRROR ASSEMBLY (FRONT PASSENGER DOOR) (WIRE HARNESS)
    1. Remove the outer mirror actuator assembly (front passenger door).

      Refer to DISASSEMBLY [10/2022 - ]

    2. Disconnect the z16 outer mirror control ECU assembly (front passenger door) connector.
    3. Measure the resistance according to the value(s) in the table below.

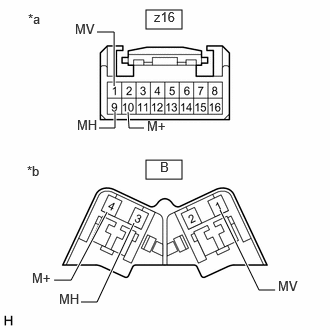

      GTY1178031Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Front view of wire harness connector
      (to Outer Mirror Control ECU Assembly (Front Passenger Door))
      *b Front view of wire harness connector
      (to Outer Mirror Actuator Assembly (Front Passenger Door))

      Standard Resistance

      Tester Connection Condition Specified Condition
      z16-9 (MH) - B-3 (MH) Always Below 1 Ω
      z16-9 (MH) or B-3 (MH) - Body ground Always 10 kΩ or higher
      z16-10 (M+) - B-4 (M+) Always Below 1 Ω
      z16-10 (M+) or B-4 (M+) - Body ground Always 10 kΩ or higher
      z16-1 (MV) - B-1 (MV) Always Below 1 Ω
      z16-1 (MV) or B-1 (MV) - Body ground Always 10 kΩ or higher

      Result

      Proceed to
      OK
      NG

    Result:

    OK

    REPLACE OUTER MIRROR ACTUATOR ASSEMBLY (FRONT PASSENGER DOOR). Refer to  DISASSEMBLY [10/2022 - ]

    Result:

    NG

    REPLACE OUTER REAR VIEW MIRROR ASSEMBLY (FRONT PASSENGER DOOR). Refer to  REMOVAL [11/2023 - ]

  4. INSPECT OUTER MIRROR SWITCH ASSEMBLY

    Refer to REMOVAL [12/2019 - ]

    Result

    Proceed to
    OK
    NG

    Result:

    NG

    REPLACE OUTER MIRROR SWITCH ASSEMBLY. Refer to  REMOVAL [12/2019 - ]

    Result:

    OK

    See step  5

  5. CHECK HARNESS AND CONNECTOR (OUTER MIRROR SWITCH ASSEMBLY - MAIN BODY ECU (MULTIPLEX NETWORK BODY ECU))
    1. Disconnect the H137 main body ECU (multiplex network body ECU).
    2. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      J22-7 (E) - H137-21 (MIRE) Always Below 1 Ω
      J22-4 (M+) - H137-22 (MIRB) Always Below 1 Ω
      J22-5 (MSW) - H137-20 (MIRS) Always Below 1 Ω
      J22-7 (E) or H137-21 (MIRE) - Body ground Always 10 kΩ or higher
      J22-4 (M+) or H137-22 (MIRB) - Body ground Always 10 kΩ or higher
      J22-5 (MSW) or H137-20 (MIRS) - Body ground Always 10 kΩ or higher

      Result

      Proceed to
      OK
      NG

    Result:

    OK

    REPLACE MAIN BODY ECU (MULTIPLEX NETWORK BODY ECU). Refer to  REMOVAL [11/2023 - ]

    Result:

    NG

    REPAIR OR REPLACE HARNESS OR CONNECTOR
