Power Mirror Control System (W/ Memory) - Diagnostic Codes & Symptom Tests
>>
POWER MIRROR CONTROL SYSTEM (w/ Memory)
>>
Power Retractable Mirrors do not Operate with Power Retract Mirror Switch [10/2022 - 11/2023]
>>

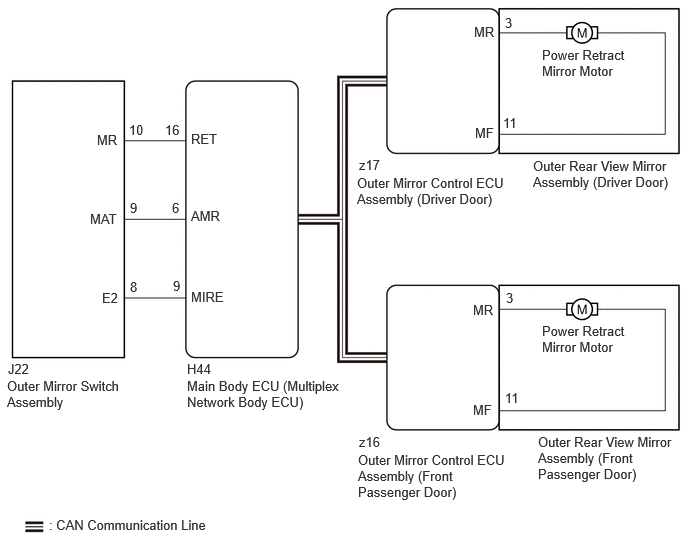

Wiring Diagram
Power Retractable Mirrors do not Operate with Power Retract Mirror Switch [10/2022 - 11/2023]: Wiring Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
