System Diagram [11/2023 - ]

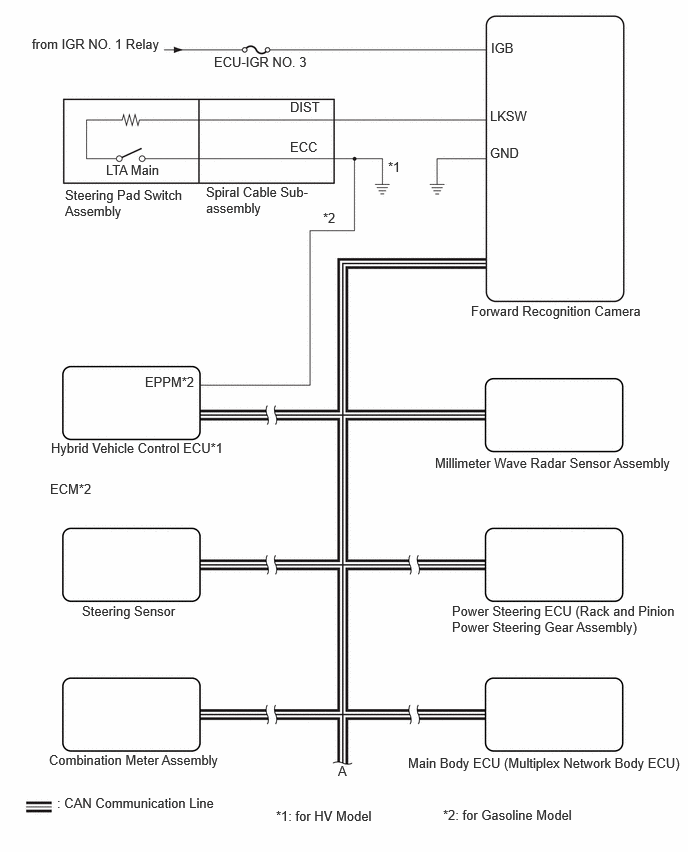

Fig 1: Lane Control System Diagram [11/2023 - ] (1 Of 2)
GTY1178522Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 2: Lane Control System Diagram [11/2023 - ] (2 Of 2)
GTY1180582Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  1. LOCAL BUS
    Fig 3: Local Bus System Diagram [11/2023 - ]
    GTY929748Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
